WDAP-5100BE
IP67 Wi-Fi 7 802.11be, Dual Band 5100Mbps Outdoor Wireless AP (one 1G/2.5Gbps 802.3at PoE+ PD WAN/LAN port + one 1Gbps LAN port, 5 x N-Type connector, -40 to 70C, 802.1Q VLAN, supports NMS-500/NMS-1000V controller, Cloud-based CloudNMS and mobile app cent
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Features
Standard-compliant Outdoor Wireless LAN
- Compliant with IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) dual-band wireless technology
- Dual-band concurrent operation with a maximum wireless throughput of 5100Mbps (2.4GHz: 688Mbps, 5GHz: 4323Mbps)
- Built-in support for advanced Wi-Fi 7 features: 4096-QAM, OFDMA, MU-MIMO, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r)
- Enhanced 3×3 5GHz Wi-Fi 7 radio boosts downlink and uplink throughput, multi-user efficiency, and long-range signal stability-ideal for outdoor surveillance uplinks and dense client environments.
Rugged Outdoor Hardware Design
- 1 × 100/1000/2500BASE-T PoE+ WAN port (802.3at PoE+ PD)
- 1 × 10/100/1000BASE-T LAN port
- Dual-band high-gain external antennas for extended outdoor coverage
- IP-rated weatherproof housing with wide temperature support (-40°C ~ 70°C)
Multiple Operation Modes and Wireless Features
- Flexible operation modes: Gateway, AP, Repeater, WISP
- Supports up to 8 SSIDs (4 per band) with VLAN-to-SSID mapping
- Wi-Fi Multimedia (WMM) for optimized audio/video streaming
- Real-time Wi-Fi channel analysis chart for interference management
- Seamless roaming with 802.11k/v/r to ensure uninterrupted client mobility
Secure Network Connection
- Comprehensive wireless security with WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, WPA/WPA2 Enterprise
- VLAN support with SSID-to-VLAN mapping, plus IP/MAC filtering and client isolation
- Enhanced security with ACL management to prevent unauthorized access
Easy Deployment and Centralized Management
- Powered by 802.3at PoE+, simplifying installation by combining power and data through a single Ethernet cable
- Fully compatible with PLANET CloudNMS platform and mobile app, and AP Controllers, enabling centralized monitoring and management
- Self-healing mechanism through system auto-reboot scheduling
- User-friendly Web GUI and setup wizard for quick configuration and monitoring
Applications
High-Bandwidth Smart City & Surveillance
The WDAP-5100BE is optimized for smart city deployments, offering high wireless throughput for outdoor surveillance and public internet access. Its 3x3 5GHz architecture enhances uplink performance, ensuring stable video transmission even in interference-heavy urban environments.
Extreme Industrial Environments
Engineered with a rugged IP67-rated metal enclosure, the WDAP-5100BE withstands dust, water exposure, and extreme temperatures ranging from -40°C to 70°C. It provides reliable wireless connectivity for automation systems and outdoor industrial deployments, including cold chain logistics and harsh industrial environments.
Long-Range Rural & Campus Connectivity
Ideal for expansive resorts, agricultural fields, and large campuses, the WDAP-5100BE features enhanced receive sensitivity to deliver extended wireless coverage. It serves as a powerful solution for wireless bridging or connecting remote IoT sensors across vast open spaces.
Ultra-High-Density Public Venues
Designed for crowded stadiums, festivals, and transportation hubs, the WDAP-5100BE leverages Wi-Fi 7 capabilities to deliver high aggregated wireless throughput. It efficiently manages high client density, ensuring smooth data transmission for multiple concurrent users in outdoor hotspots environments.

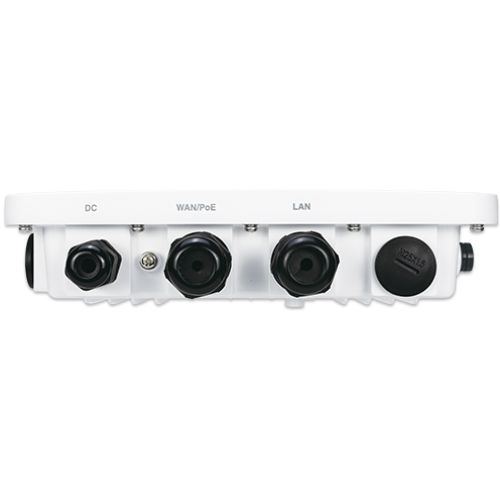

| Interfaces | WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X |
|---|---|

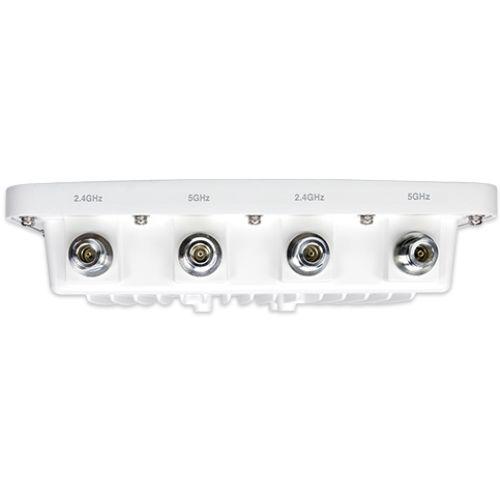

| Antennas Connectors | 2 x 2.4GHz N-Type Connectors 3 x 5GHz N-Type Connectors |
| Reset Button | Reset button on the rear side (Press over 5 seconds to reset the device to factory default.) |

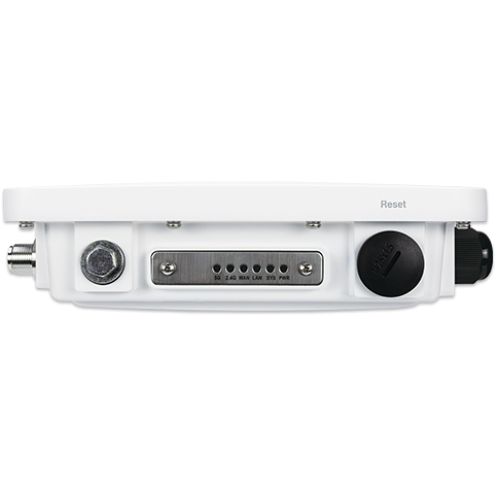

| LED Indicators | 6 x Green LEDs for Power, System, LAN, WAN, 2.4GHz, and 5GHz status |
| Dimensions (W × D × H) | 243.16 × 218.26 × 64.04 mm (without antennas) |
| Weight | 2.0 kg |
| Material | Aluminum |
| Power Requirements | IEEE 802.3at PoE (End-span, not support Mid-span), DC 12V/2A |
| Power Consumption | Max. 5.9 watts / 20.12 BTU (Power on without any connection) Max. 10.5 watts / 35.81 BTU (Full loading) |

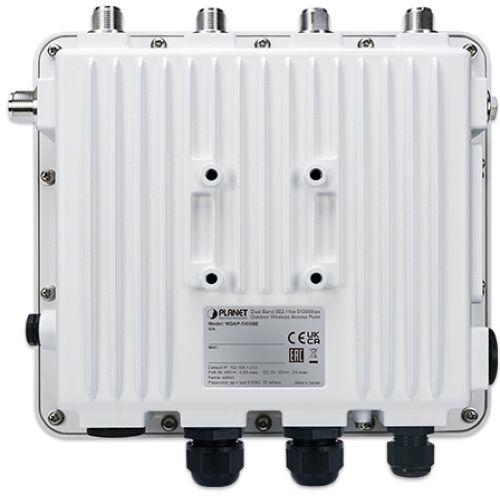

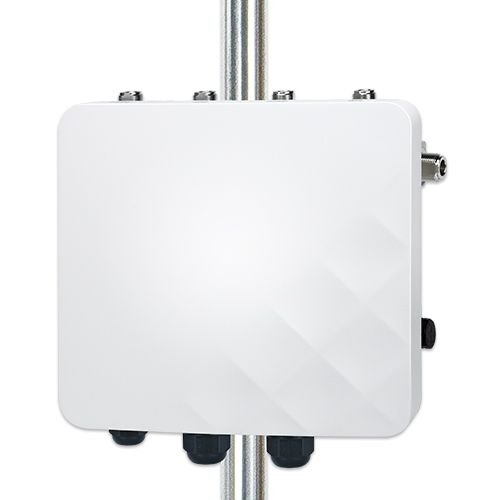

| Mounting | Mast mounting |
| IP Level | IP67 |
| ESD Protection | ±8kV air gap discharge ±6kV contact discharge |
| Surge Protection | 2KV (Common Mode), ±1KV (Differential Mode) |
| Standard | 5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r* IEEE 802.11i |
|---|---|
| Media Access Control | CSMA/CA |
| Data Modulation | 802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Band Mode | 2.4GHz / 5GHz concurrent mode |
| Frequency Range | 2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz |
| Operating Channels | ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) 5GHz channel list may vary in different countries according to their regulations. |
| Max. Transmit Power (dBm) | FCC: up to 24 ± 2dBm ETSI: < 19dBm (EIRP) Network Mode 2.4GHz Power 802.11b 802.11g 802.11n HT20 802.11n HT40 802.11ax HE20 802.11ax HE40 802.11be EHT20 802.11be EHT40 5G Power 802.11a 802.11n HT20 802.11n HT40 802.11ac VHT20 802.11ac VHT40 802.11ac VHT80 802.11ax HE20 802.11ax HE40 802.11ax HE80 802.11ax HE160 802.11be EHT20 802.11be EHT40 802.11be EHT80 802.11be EHT160 |
| Receive Sensitivity | Network Mode 2.4GHz 802.11b 802.11g 802.11n HT20 802.11n HT40 802.11ax HE20 802.11ax HE40 802.11be EHT20 802.11be EHT40 5GHz 802.11a 802.11n HT20 802.11n HT40 802.11ac VHT20 802.11ac VHT40 802.11ac VHT80 802.11ax HE20 802.11ax HE40 802.11ax HE80 802.11ax HE160 802.11be EHT20 802.11be EHT40 802.11be EHT80 802.11be EHT160 |
| 2.4G EVM | 802.11b : ≤-10dB?802.11g : ≤-25dB?802.11n : ≤ -28dB?802.11ax : ≤ -35dB?802.11be : ≤-38dB |
| 5G EVM | 802.11a : ≤-25dB?802.11n : ≤-28dB?802.11ac : ≤ -32dB?802.11ax : ≤ -35dB?802.11be : ≤-38dB |
| LAN | Static IP / Dynamic IP |
|---|---|
| WAN | Static IP Dynamic IP PPPoE / PPTP / L2TP |
| Wireless Mode | Access Point Gateway Repeater WISP |
| Channel Width | 20MHz, 40MHz, 80MHz, 160MHz |
| Encryption Security | WPA3 Personal WPA2/WPA3 Personal WPA2 Personal (AES) WPA2 Personal (TKIP) WPA2 Personal (TKIP+AES) WPA/WPA2 Personal (AES) WPA/WPA2 Personal (TKIP) WPA/WPA2 Personal (TKIP+AES) WPA2 Enterprise (802.1X) WPA/WPA2 Enterprise (802.1X) |
| Supported EAP Methods | EAP - Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 + EAP-MSCHAPv2 PEAP v1 + EAP-Generic Token Card (GTC) |
| Wireless Security | Enable/Disable SSID broadcast Wireless max. 32 MAC address filtering User isolation |
| Max. SSIDs | 8 (4 per radio) |
| Max. Clients | 256 (128 is suggested, depending on usage) |
| Wireless QoS | Supports Wi-Fi Multimedia (WMM) |
| Wireless Advanced | Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless roaming Beamforming BSS coloring |
| Status Monitoring | Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server |
| VLAN | IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs |
| Self-healing | Supports auto reboot settings per day/hour |
| Management | Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP* Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal, RADIUS Server/Client |
| Central Management | Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudNMS |
| Temperature | Operating: -40~ 70 degrees C Storage: -40 ~ 70 degrees C |
|---|---|
| Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing) |
| Regulatory | CE, RoHS |
