WDAP-W3600BE, Wi-Fi 7 3600Mbps 802.11be Dual Band In-wall Wireless Access Point, one 1G/2.5Gbps 802.3at PoE+ WAN/LAN, one 1Gbps LAN, 802.1Q VLAN, supports NMS-500/NMS-1000V controller, Cloud-based CloudNMS and mobile app central management, MQTT, Captive Portal, RADIUS
WDAP-W3600BE
Wi-Fi 7 3600Mbps 802.11be Dual Band In-wall Wireless Access Point, one 1G/2.5Gbps 802.3at PoE+ WAN/LAN, one 1Gbps LAN, 802.1Q VLAN, supports NMS-500/NMS-1000V controller, Cloud-based CloudNMS and mobile app central management, MQTT, Captive Portal, RADIUS
SPEDIZIONE GRATUITA
Features
Standard-compliant Wireless LAN and LAN
- Compliant with the IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) wireless technology
- Equipped with one 100/1000/2500BASE-T PoE RJ45 port (WAN) and one 10/100/1000BASE-T RJ45 port (LAN), supporting auto-negotiation and auto MDI/MDI-X
RF Interface Characteristics
- Dual-band concurrent operation with maximum wireless throughput up to 3600Mbps (2.4GHz: 688Mbps, 5GHz: 2882Mbps)
- Built-in dual-band omnidirectional antennas
- Advanced Wi-Fi 7 features: 4096-QAM, MU-MIMO, OFDMA, Beamforming, and Seamless Roaming
Multiple Operation Modes and Wireless Features
- Flexible operation modes: Gateway, AP, Repeater, WISP
- Supports up to 8 SSIDs (4 per band) with VLAN-to-SSID mapping
- Wi-Fi Multimedia (WMM) for optimized audio/video streaming
- Real-time Wi-Fi channel analysis chart for interference management
- Seamless roaming with 802.11k/v/r to ensure uninterrupted client mobility
Secure Network Connection
- Comprehensive wireless security with WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, WPA/WPA2 Enterprise
- VLAN support with SSID-to-VLAN mapping, plus IP/MAC filtering and client isolation
- Enhanced security with ACL management to prevent unauthorized access
Easy Deployment and Cloud Management
- Powered by 802.3af/at PoE+, simplifying installation by combining power and data through a single Ethernet cable
- Fully compatible with PLANET CloudNMS app, and AP Controllers, enabling centralized monitoring and management
- Self-healing mechanism through system auto-reboot scheduling
- User-friendly Web GUI and setup wizard for quick configuration and monitoring
Applications
Hotels and Hospitality
In guest rooms, the WDAP-W3600BE can be seamlessly installed on the bedside wall or desk area, providing high-speed Wi-Fi for streaming, video conferencing, and online entertainment. The in-wall design preserves room aesthetics, while centralized cloud management enables hotel operators to easily monitor and maintain network performance across every room.
Modern Residences and Smart Homes
For residential users, the WDAP-W3600BE integrates into the wall to keep living spaces tidy while ensuring full-home Wi-Fi coverage. It supports multiple connected devices - such as smart TVs, laptops, game consoles, and IoT appliances - delivering a smooth, intelligent, and connected lifestyle.
Campuses and Educational Institutions
In classrooms and dormitories, the WDAP-W3600BE provides reliable connectivity for multiple simultaneous users, ensuring smooth e-learning, interactive whiteboard usage, and video conferencing. With PoE+ deployment, schools can reduce wiring costs while simplifying network expansion and maintenance.
Enterprise Offices and Co-working Spaces
In business offices and shared workspaces, the WDAP-W3600BE provides reliable, secure wireless access for both employees and visitors. Using SSID-to-VLAN mapping and client isolation, administrators can segment networks for different user groups, improving security, optimizing performance, and ensuring efficient IT management.

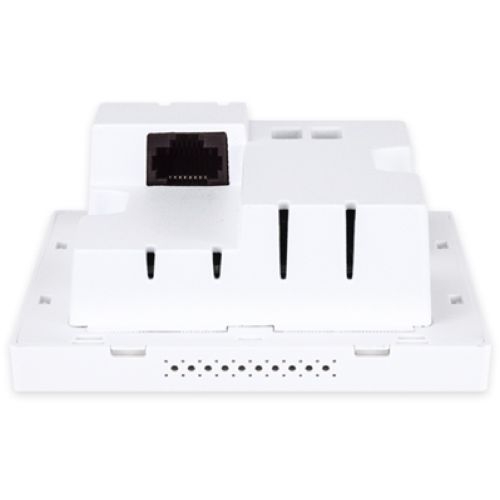

| Interfaces | WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X |
|---|---|
| Antennas | 2 × internal dual-band antennas (2.4GHz: 1.7dBi, 5GHz: 3dBi) |
| Reset Button | Reset button on the rear side (Press 6-10 seconds to reset the device to factory default.) |
| LED Indicators | Composite LED (Red: Booting, Green: 2.4GHz+5GHz or 5GHz only, Blue: 2.4GHz only) |
| Dimensions | 86 × 86 × 42.8 mm (W × D × H, with 10.8 mm beyond wall surface) |
| Weight | 210g |
| Power Requirements | IEEE 802.3af/at PoE (48V DC) |
| Power Consumption | Max. 5.1 watts / 17.4 BTU (Power on without any connection, PoE 54V) Max. 14.1 watts / 48.1 BTU (Full loading, PoE 48V) |

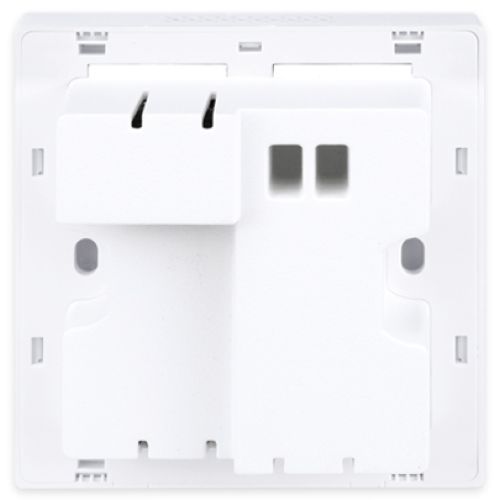

| Mounting | In-wall mount |
| Standard | 5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r* IEEE 802.11i |
|---|---|
| Media Access Control | CSMA/CA |
| Data Modulation | 802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Band Mode | 2.4GHz / 5GHz concurrent mode |
| Frequency Range | 2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz |
| Operating Channels | ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) |
| LAN | Static IP / Dynamic IP |
|---|---|
| WAN | Static IP Dynamic IP PPPoE/PPTP/L2TP |
| Wireless Mode | Access Point Gateway Repeater WISP |
| Channel Width | 20MHz, 40MHz, 80MHz, 160MHz |
| Encryption Security | WPA3 Personal WPA2/WPA3 Personal WPA2 Personal (AES) WPA2 Personal (TKIP) WPA2 Personal (TKIP+AES) WPA/WPA2 Personal (AES) WPA/WPA2 Personal (TKIP) WPA/WPA2 Personal (TKIP+AES) WPA2 Enterprise (802.1X) WPA/WPA2 Enterprise (802.1X) |
| Supported EAP Methods | EAP - Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 + EAP-MSCHAPv2 PEAP v1 + EAP-Generic Token Card (GTC) |
| Wireless Security | Enable/Disable SSID broadcast Wireless max. 32 MAC address filtering User isolation |
| Max. SSIDs | 8 (4 per radio) |
| Max. Clients | 256 (128 is suggested, depending on usage) |
| Wireless QoS | Supports Wi-Fi Multimedia (WMM) |
| Wireless Advanced | Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless roaming Beamforming BSS coloring |
| Status Monitoring | Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server |
| VLAN | IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs |
| Self-healing | Supports auto reboot settings per day/hour |
| Management | Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP* Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal, RADIUS Server/Client |
| Central Management | Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudNMS |
| Temperature | Operating: -10~ 50 degrees C Storage: -40 ~ 70 degrees C |
|---|---|
| Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing) |
| Regulatory | CE, RoHS |
