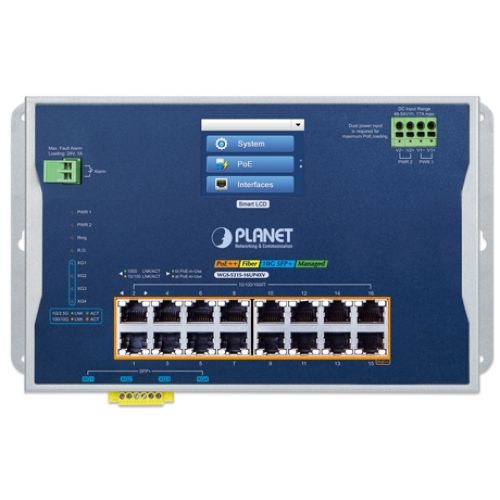

WGS-5215-16UP4XV Planet wall mount ethernet switches

Features

Physical Port

• 16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3bt PoE++ Injector function

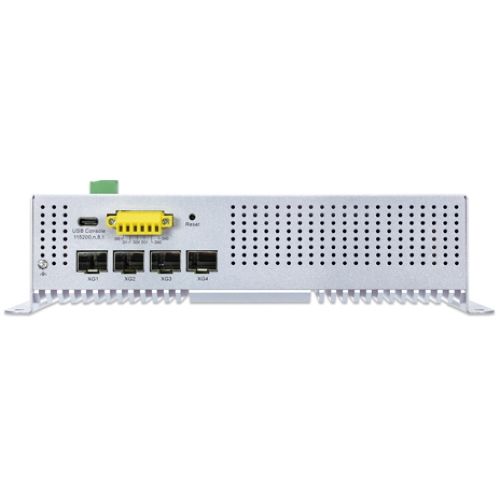

• 4 100/1G/2.5G/10GBASE-X SFP+ slots for SFP type auto detection
• One USB Type C serial port (115200,8, N, 1) for basic management and setup

Industrial Case and Installation

• IP30 aluminum case
• Supports -20 to 70 degrees C operating temperature
• Supports ESD 6KV DC Ethernet protection
• Dual power input design
• 48V~54V DC wide power input with reverse polarity protection

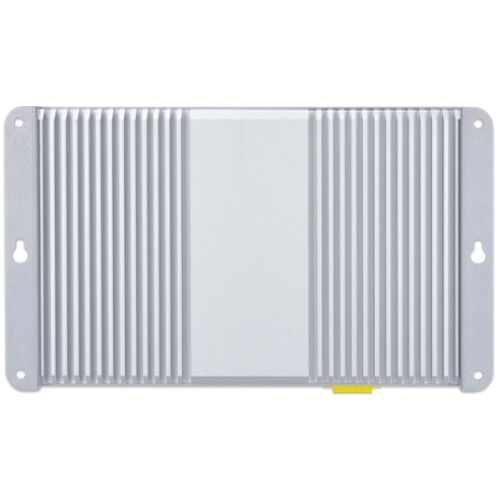

• Compact size with fixed wall-mounted design

Power over Ethernet

• Complies with IEEE 802.3bt Power over Ethernet Plus Type-4 PSE
• Backward compatible with IEEE 802.3af/at PD device
• Up to 16 IEEE 802.3af/802.3at/802.3bt PoE++ devices powered
• Supports PoE power up to 95 watts for each PoE port
• Total of 720-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
• Advanced PoE management capabilities:
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limitation
• Detection of PD classification
• Intelligent PoE features
• PD alive check
• PoE schedule
• Scheduled power recycling

Digital Input and Digital Output

• 2 Digital Input (DI)
• 2 Digital Output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via system log and SNMP trap

Layer 3 IP Routing Features

• Supports maximum 32 static routes and route summarization
• Routing interface provides per VLAN routing mode

Layer 2 Features

• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
• Protocol VLAN
• Private VLAN (Protected port)
• Management VLAN
• GVRP
• Supports Spanning Tree Protocol
• STP (Spanning Tree Protocol)
• RSTP (Rapid Spanning Tree Protocol)
• MSTP (Multiple Spanning Tree Protocol)
• STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 8 trunk groups, up to 16 ports per trunk group
• Supports port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)

Quality of Service

• Ingress and egress rate limit per port bandwidth control
• Storm control support
• Broadcast/Unknown unicast/Unknown multicast
• Traffic classification
• IEEE 802.1p CoS
• TOS/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering

Security

• Authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• RADIUS/TACACS+ login user access authentication
• DHCP Option 82
• Access control list
• IPv4/IPv6 IP-based ACL
• IPv4/IPv6 IP-based ACE
• MAC-based ACL
• MAC-based ACE
• MAC security
• Static MAC
• MAC filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• DoS attack prevention

Management

• IPv4 and IPv6 dual stack management
• Switch management interface
• Web switch management
• Console and telnet command line interface
• SNMP v1 and v2c switch management
• SSHv2, TLSv1.3 and SNMP v3 secure access
• 2.4-inch color LCD touch screen (WGS-5215-16UP4XV only)
• SNMP Management
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interface link up and link down notification
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System maintenance
• Firmware upload/download via HTTP/TFTP
• Configuration upload/download through HTTP/TFTP
• Dual images
• Hardware-based reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Network Diagnostic
• SFP-DDM (digital diagnostic monitor)
• Cable diagnostics
• ICMPv4/ICMPv6 remote ping
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Event message logging to remote syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS, NMSViewerPro and, CloudNMS for deployment management
• Provides ONVIF for co-operating with PLANET video IP surveillances

Applications

Security Building Automation Switch

Suitable for buildings where security is strictly to be enforced, the WGS-5215-16UP4XV offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-5215-16UP4XV, a tightly-controlled network can be easily had in no time.
Different Networks Managed by One Control Center
Providing up to 16 PoE++ in-line power interfaces, each port delivering up to 95 watts of output, the WGS-5215-16UP4XV can centrally manage power supplying to an industrial network system where IP phones, IP cameras, wireless APs and more are built. For instance, 16 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the WGS-5215-16UP4XV makes the installation of IP cameras and wireless APs easier and more efficient.
