XGS-6350-16X8Y4C Planet Managed

Features

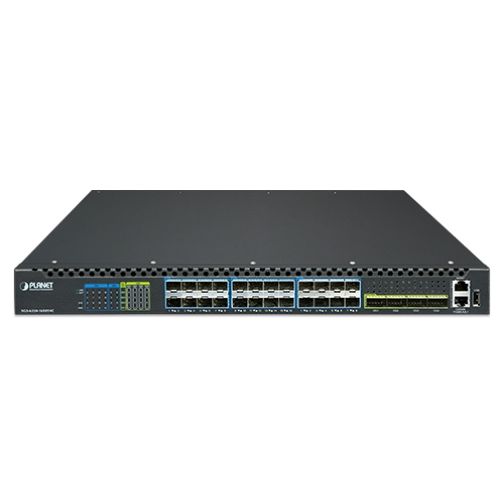

Physical Ports

• 16 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
• 8 25G SFP28 slots, compatible with 1G/10GBASE-SX/LX/BX SFP
• 4 QSFP28 slots, each supports native 100 Gigabit Ethernet, 40G and 4 x 10 Gigabit Ethernet modes
• RJ45 to DB9 console interface (115200,N,8,1) for switch basic management and setup
• MGMT port for HTTP server access
• USB port

IPv4 Features

• Static Routing, RIP v1/v2, OSPFv2 and BGP
• Policy Routing
• BFD for OSPF and BGP

IPv6 Features

• ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
• IPv6 Neighbor Discovery
• Path MTU Discovery
• MLD and MLD Snooping
• IPv6 Static Routing, RIPng, OSPFv3 and BGP4+
• Manual Tunnel, ISATAP Tunnel and 6-to-4 Tunnel

Multicast Routing Features

• Supports Multicast Routing Protocols:
• PIM-DM (Protocol Independent Multicast - Dense Mode)
• PIM-SM (Protocol Independent Multicast - Sparse Mode)
• PIM-SSM (Protocol Independent Multicast - Source-Specific Multicast Mode)
• Supports IGMP v1/v2/v3

Layer 2 Features

• Auto-MDI/MDI-X detection on each RJ45 port
• Prevents packet loss flow control
• IEEE 802.3x pause frame flow control in full-duplex mode
• Back-pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcast storm control, port loopback detects
• 112K MAC address table, automatic source address learning and aging (for XGS-6350-16X8Y4C)
• Supports VLAN
• IEEE 802.1Q tag-based VLAN
• GVRP for dynamic VLAN management
• Up to 4094 active VLANs
• Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
• Private VLAN Edge (PVE) supported
• GVRP protocol for Management VLAN
• Protocol-based VLAN
• MAC-based VLAN
• Supports Link Aggregation
• Maximum 32 trunk groups with up to 8 ports per trunk group
• IEEE 802.3ad LACP (Link Aggregation Control Protocol)
• Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
• STP, IEEE 802.1D (Classic Spanning Tree Protocol)
• RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
• MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• BPDU & root guard
• Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)

Quality of Service

• 8 priority queues on all switch ports
• Supports strict priority and WRR (Weighted Round Robin) CoS policies
• Traffic classification
• IEEE 802.1p CoS/ToS
• IPv4/IPv6 DSCP
• Port-based WRR
• Strict priority and WRR CoS policies

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3; and IPv6 MLD v1 and v2 snooping
• Querier mode supports
• Supports Multicast VLAN Register (MVR)

Security

• Authentication
• IEEE 802.1x port-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• RADIUS/TACACS+ users access authentication
• Change of Authorization (COA)
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List (ACL)
• Port-based Access Control List (ACL)
• Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• Console and Telnet Command Line Interface
• HTTP web switch management
• SNMP v1 and v2c switch management
• SSHv2, SSLv3, TLSv1.3 and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms, and events)
• SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP
• Reset button for system reboot or reset to factory default
• Dual images
• DHCP Functions:
• DHCP Relay
• DHCP Option 82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• Network Diagnostic
• SFP-DDM (Digital Diagnostic Monitor)
• ICMP remote IP ping
• Syslog remote alarm
• System Log
• Supports ping, trace route function for IPv4 and IPv6
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS, and CloudNMS for deployment management

Stacking Management

• Virtualized multiple XGS-6350-16X8Y4C switches integrated into one logical device
• Single IP address stack management, supporting up to 10 hardware units stacked together
• Stacking architecture supports redundant Ring mode

Applications

High-Availability Mesh Networking for Big Data Systems

By leveraging advanced optical fiber networking technology with high flexibility, scalability, and ease of deployment, the XGS-6350-16X8Y4C delivers high-capacity switching performance up to 1520Gbps and supports transmission distances of up to 80km over single-mode fiber. It provides robust and rapid self-recovery capabilities to minimize service interruptions and protect against external link failures. The switch integrates Multiple Spanning Tree Protocol (IEEE 802.1s MSTP) to strengthen system reliability and ensure continuous uptime in mission-critical environments. With its high bandwidth and resilient architecture, the XGS-6350-16X8Y4C is an ideal solution for data centers, service providers, and telecom operators building redundant, high-capacity infrastructures for Big Data and analytics platforms.

Layer 3 VLAN Routing and 100G Uplink Application

With the built-in Layer 3 routing capabilities, the XGS-6350 Series ensures reliable inter-VLAN and inter-subnet routing. The routing protocols can be applied on VLAN interfaces, supporting up to 32K hardware-based routing entries. As an ideal solution for enterprise networks, the XGS-6350 Series provides enhanced security, improved traffic control, optimized bandwidth utilization, and high-speed 100G uplink connectivity.
