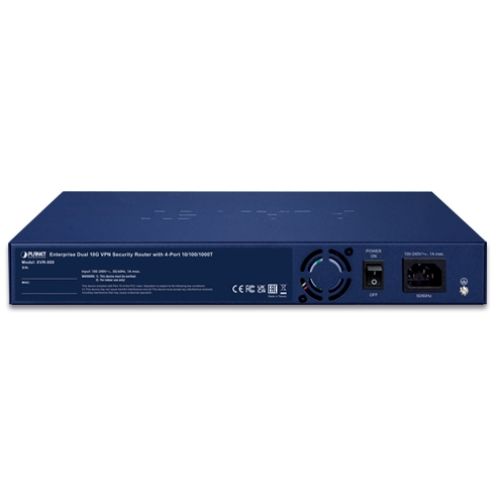

XVR-800 Planet Router Firewall

Features

Highlights

• One 1G/2.5G/5G/10GBASE-T RJ45 Port for WAN/LAN interface
• One 1G/2.5G/10GBASE-X SFP+ slot for WAN/LAN interface
• Dual-WAN failover and dual-WAN load balancing
• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec/OpenVPN/WireGuard)
• Stateful Packet Inspection (SPI) firewall and content filtering
• Blocks DoS/DDOS attack, port range forwarding
• High Availability, AP Controller, Captive Portal and RADIUS
• IPv6, SNMP, PLANET DDNS and Universal Network Management System
• Planet NMS controller system and CloudNMS platform supported
• Supports up to 100 concurrent SSL VPN connections

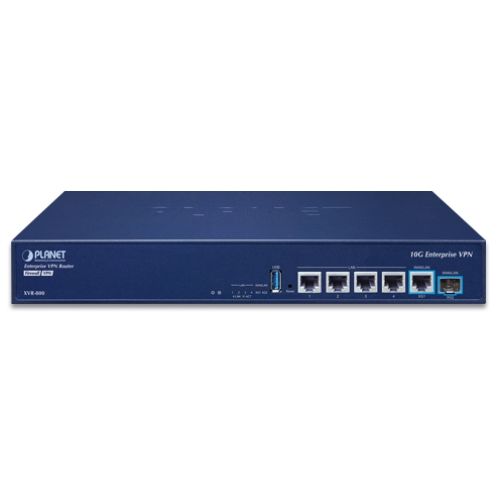

Hardware

• 4 10/100/1000BASE-T RJ45 ports
• 1 1G/2.5G/5G/10GBASE-T RJ45 Port for WAN/LAN interface
• 1 1G/2.5G/10GBASE-X SFP+ slot for WAN/LAN interface
• 1 USB port for system configuration backup and restoration
• Reset button
• Desktop installation or rack mounting

IP Routing Feature

• Static Route
• Dynamic Route
• OSPF

Firewall Security

• Secure Boot to ensure trusted firmware integrity
• Hardware TRNG (True Random Number Generator) for high-entropy cryptographic key generation
• Cybersecurity
• Stateful Packet Inspection (SPI) firewall
• Blocks DoS/DDoS attack
• Content Filtering
• MAC Filtering and IP Filtering
• NAT ALGs (Application Layer Gateway)
• Blocks SYN/ICMP Flooding

VPN Features

• IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (OpenVPN, compatible with VPN services such as Surfshark and NordVPN), WireGuard
• Encryption methods: DES, 3DES, AES, AES-128/192/256
• Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512
• PQC TLS (Post-Quantum Cryptography TLS) readiness for future-proof encryption

Networking

• Outbound load balancing
• Failover for dual-WAN
• High Availability
• Captive Portal
• RADIUS Server/Client
• Static IP/PPPoE/DHCP client for WAN
• DHCP server/NTP client for LAN
• Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
• Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
• MAC address clone
• DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP
• NAT disable support for pure routing mode deployment

Others

• Setup wizard
• Dashboard for real-time system overview
• SFP-DDM (Digital Diagnostic Monitor)
• Supported access by HTTP or HTTPS
• Auto reboot
• PLANET NMS System and Smart Discovery Utility for deployment management
• PLANET CloudNMS app for real-time monitoring

Applications

Secure Multi-Site Connectivity with High-Speed VPN Deployment

The XVR-800 is ideal for enterprises and branch offices that require secure interconnection across multiple locations. With comprehensive VPN support including IPSec, SSL (OpenVPN), and WireGuard, it enables encrypted communication between headquarters, remote offices, and mobile workers. The dual 10G WAN interfaces ensure high-bandwidth transmission for data-intensive applications, while advanced routing and load balancing optimize traffic distribution across network links for improved efficiency and reliability.

Centralized Network Management with Integrated Security Services

Designed for small to medium-sized businesses, the XVR-800 integrates essential network services such as AP Controller, Captive Portal, RADIUS authentication, and DHCP server into a single platform. This allows administrators to easily deploy and manage secure wired and wireless networks without additional servers. Combined with SPI firewall, DoS/DDoS protection, content filtering, and QoS capabilities, the XVR-800 delivers a unified solution that enhances network security, simplifies management, and ensures stable performance for daily business operations.
