45MR-4420-T
Module for ioThinx 4500 Series,4 AOs,0 to 10V/0 to 20mA/4 to 20 mA,-40 to 75°C operating temperature
Bisogno di aiuto?
Certificati
Features and Benefits
- I/O modules include DI/Os, AI/Os, relays, and other I/O types
- Power modules for system power inputs and field power inputs
- Easy tool-free installation and removal
- Built-in LED indicators for IO channels
- Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Introduction

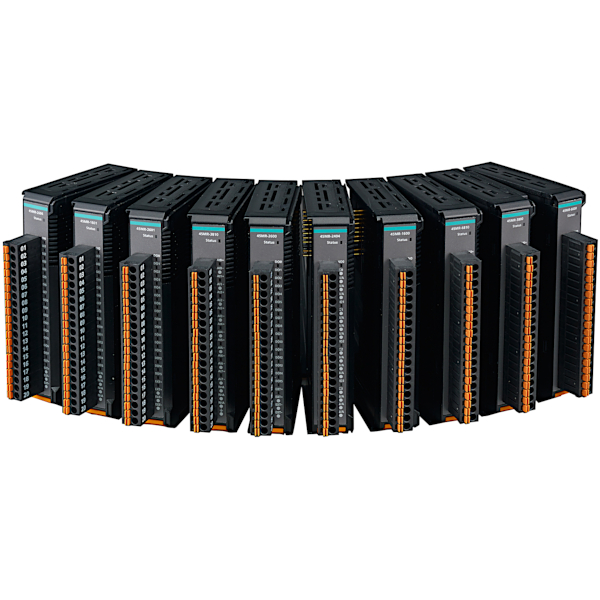

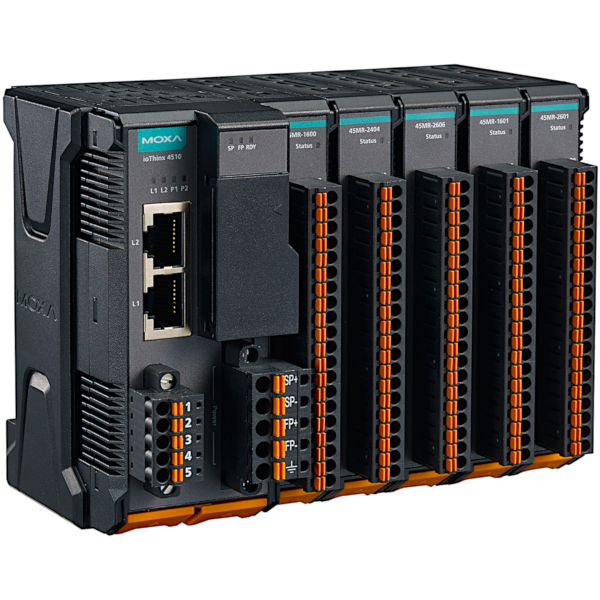

Moxa’s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.
Specifications
Input/Output Interface
Analog Output Channels: 4
Isolation: 3k VDC or 2k Vrms
Analog Outputs
Connector: Spring-type Euroblock terminal
I/O Mode: Voltage/Current
Output Range:
0 to 10 VDC
0 to 20 mA
4 to 20 mA
Resolution: 12-bit
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -40 to 75°C
Load (Current Mode): Internal power: 500 ohms (max.)
Load (Voltage Mode): 1000 ohms (min.)
Power Consumption
System Power: 44 mA @ 3.3 VDC
Field Power:
220.2 mA @ 12 VDC
122.3 mA @ 24 VDC
Physical Characteristics
Housing: Plastic
Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Weight: 79 g (0.175 lb)
Installation: DIN-rail mounting
Wiring: I/O cable, 18 to 24 AWG
Strip Length: I/O cable, 9 to 10 mm
Environmental Limits
Operating Temperature:-40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 4000 meters
Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Safety: UL 61010-2-201
Declaration
Green Product: RoHS, CRoHS, WEEE
MTBF
Time: 1,450,453 hrs
Standards: Telcordia SR332
Warranty
Warranty Period: 5 years
