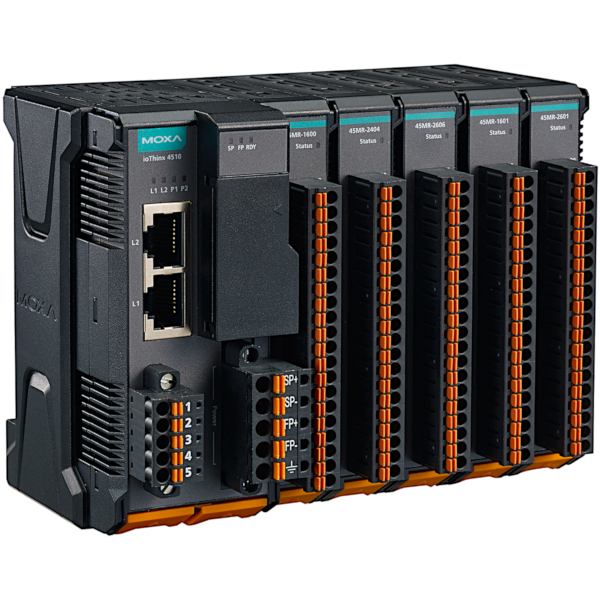

45MR-7210
Module for ioThinx 4500 Series, system and field power input, -20 to 60°C operating temperature
Bisogno di aiuto?
Certificati
Features and Benefits
- I/O modules include DI/Os, AI/Os, relays, and other I/O types
- Power modules for system power inputs and field power inputs
- Easy tool-free installation and removal
- Built-in LED indicators for IO channels
- Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Introduction

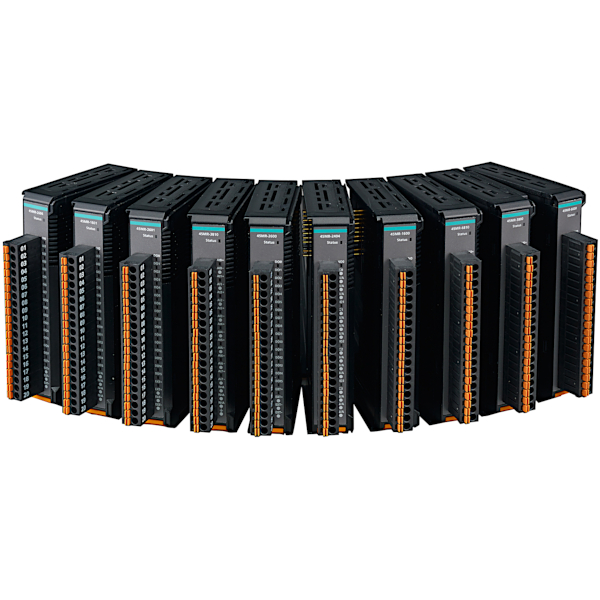

Moxa’s ioThinx 4500 Series (45MR) Modules are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.
Specifications
Input/Output Interface
System Power Input Channels: 1
Field Power Input Channels: 1
System Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Output Current: 1 A (max.)
Power Consumption: 800 mA @ 12 VDC
Over-Voltage Protection: 55 VDC
Over-Current Protection: 1 A @ 25°C
Field Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12/24 VDC
Output Current: 2 A (max.)
Over-Current Protection: 2.5 A @ 25°C
Over-Voltage Protection: 33 VDC
Power Consumption
System Power: 45 mA @ 24 VDC
Physical Characteristics
Housing: Plastic
Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Weight: 77 g (0.17 lb)
Installation: DIN-rail mounting
Wiring: I/O cable, 18 to 24 AWG
Strip Length: I/O cable, 9 to 10 mm
Environmental Limits
Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 4000 meters
Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Safety: UL 61010-2-201
Declaration:
Green ProductRoHS, CRoHS, WEEE
MTBF
Time: 2,550,077 hrs
Standards: Telcordia SR332
Warranty
Warranty Period: 5 years
