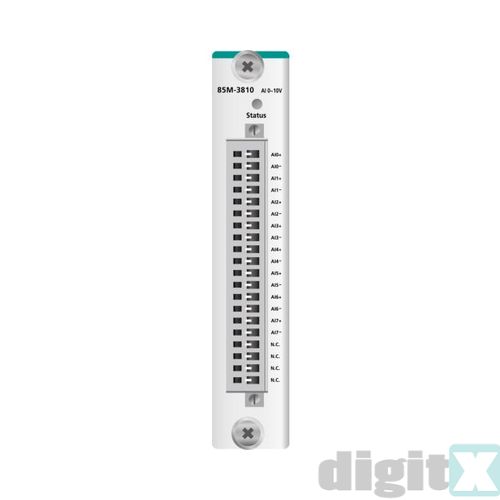

85M-3810-T MOXA Modular RTU Controllers

Features

• 8 analog inputs, 0 to 10 VDC

Inputs and Outputs

Analog Inputs: 8 channels
Isolation: 3K VDC or 2K Vrms

Analog Inputs

Type: Differential
Resolution: 16 bits
I/O Mode: 0 to 10 VDC
Accuracy:
     ±0.1% FSR @ 25°C
     ±0.3% FSR @ -40 and 75°C
Sampling Rate:
     All channels: 100 samples/sec
     Per channel: 12.5 samples/sec
Input Impedance: 200 k-ohms (min.)

Physical Characteristics

Wiring: I/O cable, max. 16 AWG
Connector: Spring type terminal block

Environmental Limits

Operating Temperature:  -40 to 75°C

Power Requirements

Power Consumption: 1.04 W @ 3.3 VDC

MTBF (mean time between failure)

Time: 1,530,690 hrs
Database: Telcordia (Bellcore)
