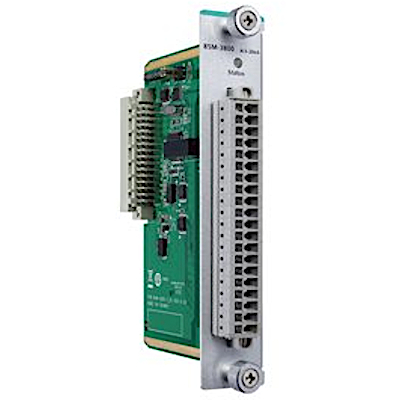

86M-1620D-T MOXA Modular RTU Controllers

Features and Benefits

• Complies with all EN 50155 mandatory test items
• Complies with EN 50121-4
• Rugged and compact design for harsh environments

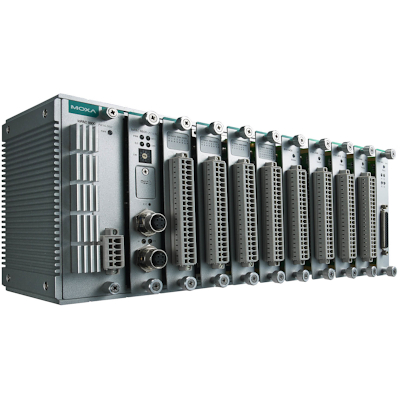

• Expand the I/O and communication capabilities of your ioPAC 8600 Series device
• Wide operating temperature range: -40 to 75°C (-40 to 167°F)
• Channel-to-channel isolated digital input and output
• 24 to 110 V DI/O module and universal power input range module
• Supports CAN bus for CAN 2.0 A/B communication

Introduction

Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.

Specifications

Input/Output Interface
Digital Input Channels: 16
Isolation: 3k VDC or 2k Vrms

Digital Inputs
Voltage: 24 to 110 VDC
Connector: Spring-type Euroblock terminal
Debouncing Function: Software enable/disable
Debouncing Time: 1 to 15 ms (software-selectable)
I/O Mode: DI
Points per COM: 8 channels
Scan on Time: 0.5 ms
Scan Period: 8 ms (typical)
Sensor Type: PNP
Wet Contact (DI to COM):
On: > 0.3 times external power voltage
Off: < 0.15 times external power voltage

Power Parameters
Power Consumption: 12.6 mA @ 24 VDC

Physical Characteristics
Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
Weight: Under 80 g
Wiring: I/O cable, 14 to 28 AWG

Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m

Standards and Certifications
EMC: EN 55032/24, EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Railway: EN 50121-4, EN 50155
Safety: UL 508
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6

MTBF
Time: 1,115,244 hrs
Standards: Telcordia SR332

Warranty
Warranty Period: 5 years
