A007103 ROBUSTEL Cellular Modems

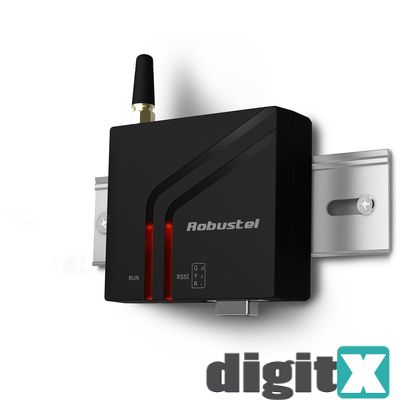

GoRugged M1000 MP

Industrial Cellular Modem
for GSM/GPRS/EDGE/UMTS/HSPA+ Networks
Robustel GoRugged M1000 MP is a compact design cellular modem with serial/USB port and plastic housing, offering state-of-the-art 2G/3G connectivity for machine to machine (M2M) applications.

Key Features

Control via AT commands (Hayes 3GPP TS 27.007 and 27.005).
TCP/IP, SMS, CSD access via AT commands.
1 serial port and 1 mini USB 2.0 high speed interface.
Wide range input voltages from 6 to 26 VDC and extreme operating temperature.
The plastic enclosure can be mounted on a DIN-rail or on the wall, also with extra ground screw.

Applications

Automatic Meter Reading
PLC Remote Management
Vending Machine Remote Management
LED Signage Publication
POS Connectivity Backup
Bulk SMS

Specifications
Cellular Interface

Standards: GSM/GPRS/EDGE/UMTS/HSDPA/HSPA+
GPRS: max. 86 kbps (DL & UL), class 10
EDGE: max. 236.8 kbps (DL & UL), class 12
UMTS: max. 384 kbps (DL & UL)
HSDPA: max. 3.6 Mbps/384 kbps (DL/UL)
HSPA+: max. 14.4/5.76 Mbps (DL/UL)
Frequency: 850/900/1800/1900 MHz for GPRS/EDGE, 900/2100 MHz or 850/900/1900/2100 MHz for UMTS/HSDPA/HSPA+
CSD: Up to 9.6 kbps
SIM: 1 x (3V & 1.8V)
Antenna Interface: SMA Female

Serial Interface

Number of Ports: 1 x DB9 Female
Serial Standards: RS232
ESD Protection: ±15KV
Parameters: 1200bps to 115200bps
RS-232: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI

USB Interface

Number of Ports: 1 x mini USB Female
Speed: USB 2.0 High Speed (480 Mbit/s)
ESD Protection: 15KV

System

LED Indicators: RUN
Power Supply and Consumption
Power Supply Interface: 2-pin 3.5mm pluggable terminal block
Input Voltage: 6 to 26 VDC for 3G version and 6 to 18 VDC for 2G version
Power Consumption: Idle: 50-60 mA@12 V
Data Link: 100 to 200 mA (peak)@12 V

Physical Characteristics

Housing & Weight: Plastic, 105g
Dimension(L x W x H): 75 x 85 x 28 mm
Installation: 35mm Din-Rail or wall mounting or desktop
Regulatory and Type Approvals
Approval and Detective: CE, R&TTE, RoHS, WEEE
