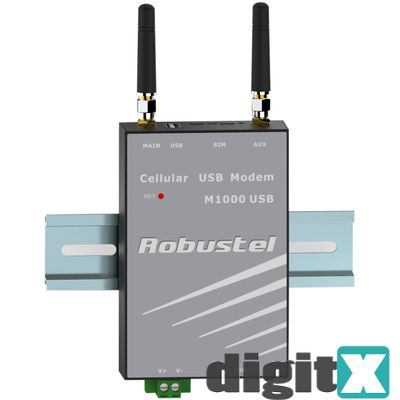

GoRugged M1000 USB
Industrial Cellular USB Modem for 2G/3G/4G Networks Robustel GoRugged M1000 USB is a rugged cellular modem with USB interface offering state-of-the-art 2G (GPRS/EDGE)/3G (HSPA/EV-DO)/4G (LTE) connectivity for machine to machine (M2M) applications.
Control via AT commands.
USB 2.0 high speed interface allows it to manage and optimize the performances of 3G and 4G high-speed networks.
LTE downlink/uplink up to 100/50 Mbps.
GPS receiver optional for specified model.
Antenna diversity for improved fringe performance optional.
Comprehensive SDK and enabling drivers for Linux and Windows.
Wide range input voltages from 9 to 36 VDC and extreme operating temperature.
The metal enclosure can be mounted on a DIN-rail or on the wall, also with extra ground screw.
Industrial PC connectivity
Ticket Vending Machine connectivity
Digital Signage connectivity
Standards: LTE (DL/UL up to 100/50 Mbps), HSPA+/HSUPA/HSDPA/UMTS, EDGE/GPRS, EVDO 450
Frequency: Please refer to “Selection and Ordering Data”
SIM: 1 x (3V & 1.8V)
Antenna Interface: SMA Female
Number of Ports: 1 x Type A Female
Speed: USB 2.0 High Speed (480 Mbit/s)
ESD Protection: 15KV
GPS (optional for M1000-U3P and M1000-U4L)
Modes: Standalone GPS, Assisted GPS
Drivers: Windows 2000/XP/Vista/7/CE, Linux 2.6
LED Indicator: NET
Power Supply and Consumption
Power Supply Interface: 2-pin 5mm pluggable terminal block with lock
Input Voltage: 9 to 36 VDC
Housing & Weight: Metal, 300g
Dimension(L x W x H): 111 x 72 x 28 mm
Installation: 35mm Din-Rail or wall mounting or desktop
Regulatory and Type Approvals
Approval and Detective: CE, RoHS, WEEE
