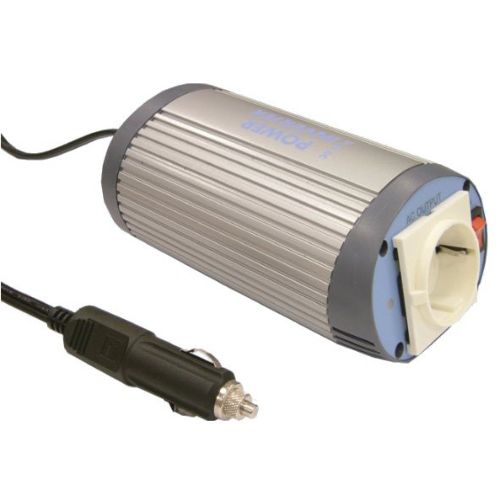

A301-150-F3 Mean Well Onda Modificata

 Features

• 12V or 24V DC input
• Power ON-OFF switch
• Input voltage range: -15% ~ +25%
• Output voltage regulation: ±10%
• Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/
• Over temp./Output short/Input polarity reverse/Over load.
• Output waveform: Modified sine wave
• Topology: Microprocessor
• Approvals: e13/ CE
• 1 year warranty

Specifications

OUTPUT

SAFETY MODEL NO.: A-300-150W
AC VOLTAGE: 230V
RATED POWER: 150W
SURGE POWER: 300W
WAVEFORM: Modified sine wave
FREQUENCY: 50Hz±1%
AC REGULATION: ±10%
STANDARD RECEPTACLES: TYPE-3* 1ea
LED INDICATOR: Dual-color indicators display for power on / failure status

INPUT

DC CURRENT: 15A
NO LOAD CURRENT DRAW: 0.25A
DC VOLTAGE: 12V
INPUT VOLTAGE RANGE: 10~15VDC
EFFICIENCY (Typ.): 78%
DC CONNECTOR: 700mm Cigarette plug*1ea
FUSE: 15A*1ea
