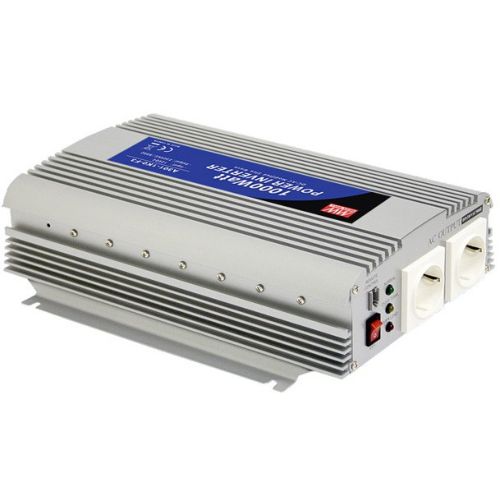

A302-1K0-F3 Mean Well Onda Modificata

  Features

• 12V or 24V DC input
• Power ON-OFF switch
• Input voltage range: -15% ~ +25%
• Output voltage regulation:i10%
• Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
• Output waveform: Modified sine wave
• Cooling fan ON-OFF control
• ON/OFF remote control(Optiona|)
• Approvals: e13/ CE
• 1year warranty

Specifications

OUTPUT

SAFETY MODEL NO.: A-1000W
AC VOLTAGE: 230v
RATED POWER: 1000W
PEAK POWER: 1200W<30min.
SURGE POWER: 2400W
WAVEFORM: Modified Sine Wave
FREQUENCY: 50Hz±1%
AC REGULATION: ±10%
STANDARD RECEPTACLES: TYPE-3* 3ea
LED INDICATOR: Green LED for power on; Yellow LED for O.T.P.; Red LED for power failure status

INPUT

DC CURRENT: 55A
NO LOAD CURRENT DRAW: 0.2A
DC VOLTAGE: 24V
VOLTAGE RANGE: 21~30VDC
EFFICIENCY (Typ.): 85%
DC CONNECTOR: 1000mm R type terminal
FUSE: 20A*5
