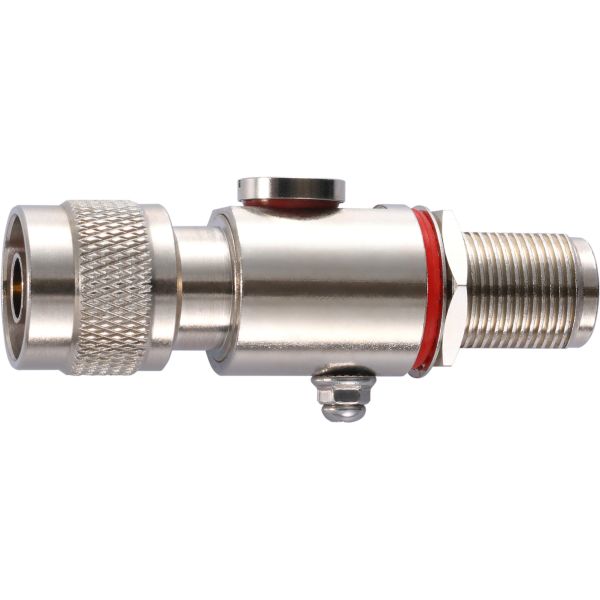

A-SA-NMNF-02, 0 to 6 GHz, N-type (male) to N-type (female) surge arrester
A-SA-NMNF-02
0 to 6 GHz, N-type (male) to N-type (female) surge arrester
Features and Benefits
- N-type connector
Introduction
The A-SA-NMNF-02 Series is a N-type (male) to N-type (female) surge arrester to help protect connected electrical devices from power surges.
Specifications
Physical Characteristics
Frequency: 0 to 6 GHz
V.S.W.R.: 1:1.5 @ 0-6 GHz
Insertion Loss: 0.5 dB (max.)
DC Breakdown Voltage: 230 V ± 20% @ 100 V/S
Impulse Breakdown Voltage: < 700 V @ 1k V/μs
Surge Discharge Current: 10 kA @ 8/20 μs
Initial Insulation Resistance: ≥ 1000 mΩ
Electrode Capacitance: 1.5 P
Warranty
Warranty Period: 1 year
