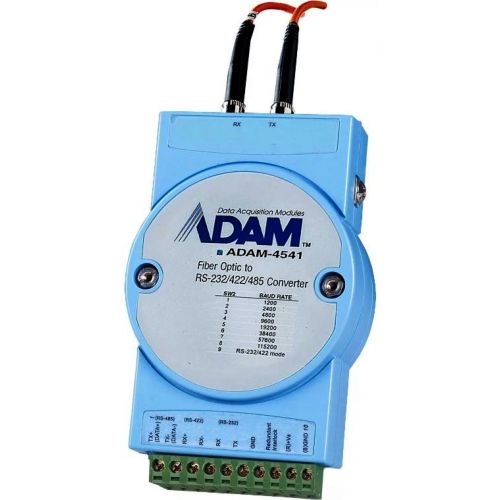

ADAM-4541-C, Multi-mode Fiber Optic to rs232/422/485 Converter
ADAM-4541-C
Multi-mode Fiber Optic to rs232/422/485 Converter
SPEDIZIONE GRATUITA
Bisogno di aiuto?
General Specifications
Power Input: Unregulated 10 ~ 30 VDC
Connectors:
1 x plug-in terminal block (#14 ~ 22 AWG) (RS-232/422/485)
2 x ST fiber connector
Power Consumption: 1.5 W @ 24 VDC
Serial Communications
Communication Mode: Asynchronous
Speed Modes (bps): 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k and RS-232/422 mode (switchable)
Transmission Mode: Full/half duplex, bidirectional
Fiber Optic Communications
Optical Power Budget (Attenuation): 12.5 dB (measured with 62.5/125 μm)
Transmission Distance: 2.5 km
Transmission Mode: Multi mode (Send and Receive)
Wavelength: 820 nm
