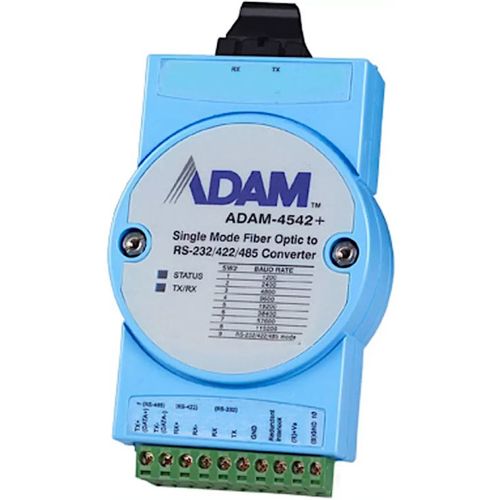

ADAM-4542+-BE
Single-mode Fiber Optic to rs232/422/485 Converter
SPEDIZIONE GRATUITA
General Specifications
Power Input: Unregulated 12 ~ 24 VDC
Connectors:
1 x plug-in terminal block (#14 ~ 22 AWG) (RS-232/422/485)
1 x SC fiber connector
Power Consumption: 3 W @ 24 VDC
Operation Modes: Support Point-to-Point, Redundant and Ring (half-duplex)
Redundant Transfer Time: 1 μs
Serial Communications
Communication Mode: Asynchronous
Speed Modes (bps): 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k, 230.4 k, 460.8 k, 921.6 k and RS-232/422/485 mode (switchable)
Transmission Modes: Full/half duplex, bidirectional
Fiber Optic Communications
Optical Power Budget (Attenuation): 15 dB
Transmission Distance: 15 km
Transmission Mode: Single mode (Send and Receive)
Wavelength: 1310 nm
