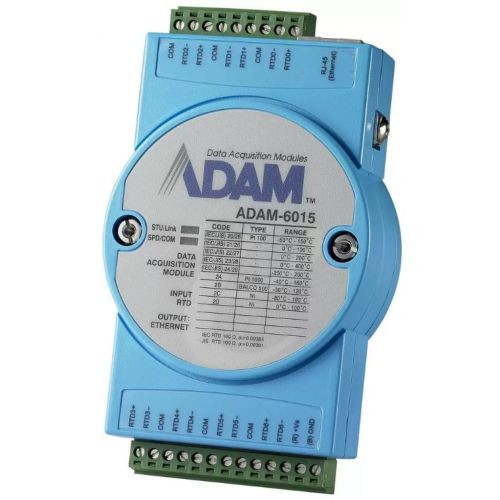

ADAM-6015-DE ADVANTECH Ethernet IO Modules

 Analog Input

Channels: 7 (differential)
Input Impedance: > 10 MΩ
Input Connections: 2 or 3 wire
Input Type: Pt, Balco and Ni RTD
Accuracy: ± 0.1 % or better
High speed mode ±0.5% or better
Span Drift: ± 25 ppm/°C
Zero Drift: ± 6 μV/°C
Resolution: 16-bit
Sampling Rate:
10 sample/ second (total)
High speed mode:1K sample/second (total)
CMR @ 50/60 HZ 90dB
NMR @ 50/60 HZ 60dB
* high speed mode does not support CMR/NMR

Wire Burnout Detection

General

LAN: 10/100Base-T(X)
Power Consumption: 2.5 W @ 24 VDC
Connectors: 1 x RJ-45 (LAN), Plug-in screw terminal block (I/O and power)
Watchdog System: (1.6 second) and Communication (programmable)
Power Input: 10 ~ 30 VDC
Supports Peer-to-Peer
Supports GCL
Supports Modbus/TCP, TCP/IP, UDP, HTTP and MQTT (ADAM-6017) Protocols

Protection

Over Voltage Protection: ±35 VDC
Isolation Protection: 2,000 VDC
Built-in TVS/ESD Protection
Power Reversal Protection
