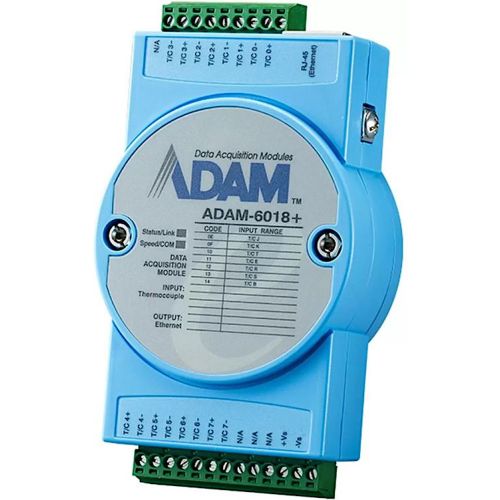

ADAM-6018+-D ADVANTECH RS-485 IO Modules

 Analog Input

Channels: 8 (differential)
lnput Type: Thermocouple
Accuracy@25°C:
 Type J,K,E,R,S: ±0.1% FSR Max
 Type B: ±0.15% FSR Max
 Type T: ±0.2% FSR Max
Span Drift: ±25 ppm/°C
Zero Drift: ±6 μV/°C
Resolution: 16-bit
Sampling Rate: 10 sample/ second (total)
Wire Burnout Detection

General Specifications

Certification: FCC, CE
LAN: 10/100Base-T(X)
Power Consumption: 1 W @ 24 VDC
Connectors: 1 x RJ-45 (LAN), Plug-in screw terminal block (I/O and power)
Watchdog: System (1.6 second) and Communication (programmable)
Power Input: 10 ~ 30 VDC
Supports Peer-to-Peer
Supports GCL
Supports Modbus/TCP, TCP/IP, UDP, RESTful ,
MQTT ( D version), SNMP (D version) Protocols

Protection

Isolation Protection: 2,000 VDC
Built-in TVS/ESD Protection
Power Reversal Protection
