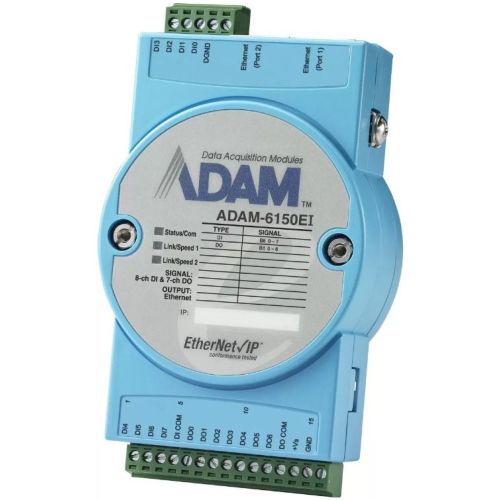

ADAM-6150EI-AE ADVANTECH Ethernet IO Modules

Digital Input

Channels: 8
Dry Contact:
 Logic level 0: open
 Logic level 1: close to DGND
Wet Contact:
 Logic level 0: 0 ~ 3 VDC or 0 ~ -3 VDC
 Logic level 1: 10 ~ 30 VDC or -10 ~ -30 VDC
(Dry/Wet Contact decided by switch)
Input Impedance: 5.2 kΩ (Wet Contact)
Transition Time:
 From logic level 0 to 1: 0.2 ms
 From logic level 1 to 0: 0.2 ms

Digital Output

Channels:7
Output Voltage Range: 8 ~ 35 VDC
Normal Output Current: 100 mA (per channel)

General

LAN: 10/100Base-T(X)
Power Consumption: 3 W @ 24 VDC
Connectors: 2 x RJ-45 LAN, (Daisy Chain) Plug-in screw terminal block (I/O and power)
Watchdog: System (1.6 second)
Power Input: 10 ~ 30 VDC

Protection

Over Voltage Protection: ±35 VDC
Isolation Protection: 2,500 VDC
Power Reversal Protection
Environment
Operating Temperature: -10 ~ 70°C (14 ~ 158°F)
Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity: 20 ~ 95% RH (non-condensing)
Storage Humidity: 0 ~ 95% RH (non-condensing)
