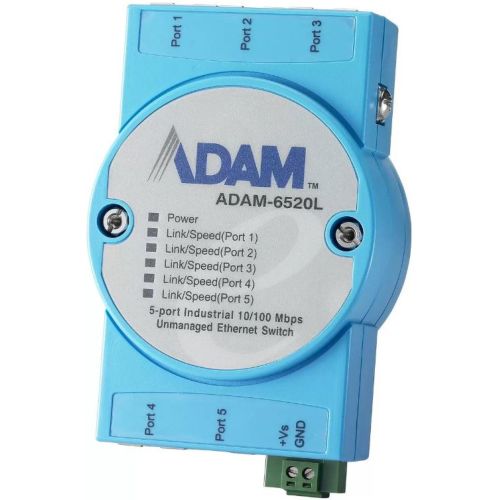

ADAM-6520L-AE ADVANTECH DIN Rail Unmanaged switches



5-port 10/100 Mbps Industrial Unmanaged Ethernet Switch, Flexible mounting, 0~60° C


Prezzo per pezzo

€ 102,06

(IVA esclusa)

€ 124,51 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 124,51

Disponibilità: 10 gg lav


SKU: 117426

Model: ADAM-6520L-AE

Line: 100M

Bisogno di aiuto?


  • Industrial Ethernet Solutions
  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Embedded with a switch controller, supports auto-negotiation
  • Supports +10 ~ 30 VDC voltage power input
  • Provides surge (EFT) protection 3,000 V
  • DC for power line (ADAM-6520L not equipped)
  • Supports 4,000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
  • Provides flexible mounting: DIN-rail, Wall, Stack
  • Supports wide operating temperature range: -40 ~ 85° C (ADAM-6520I)


ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation). Just like any other product in the ADAM family,
ADAM-6520 can bemounted in three different ways: DIN rail, Walland Stack. Solid industrial-grade design assuresreliable operation in common application areaslike:semi-conductor
factories, inventory control environments, assembly lines, manufacturing and many more.
All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block, and 3,000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating
temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any
collisions, the link status, power failure and data receipts for immediate on-site diagnosis.



Standard: IEEE 802.3, 802.3u, 802.3x
LAN: 10/100Base-TX
Transmission Distance: Up to 100 m
Transmission Speed: Up to 100Mbps


    5 x RJ-45
    2-pin removable screw terminal (power)
LED Indicators. Power, Link/Speed


Power Consumption: Max. 3W
Power Input: 1 x Unregulated 10 ~ 30 VDC


Dimensions (W x H x D): 70 x 102 x 27 mm
Enclosure: IP30, ABS+PC with solid mounting kits
Mounting: DIN 35 rail, Wall, Stack


ESD (Ethernet): 4,000 VDC (ADAM-6520L not equipped)
Surge (EFT for power): 3,000 VDC (ADAM-6520L not equipped)


Operating Temperature: 0 ~ 60° C (32 ~ 140° F), Stack: 0 ~ 50° C (32 ~ 122° F)
Storage Temperature: -10 ~ 70° C (14 ~ 158° F)
Operating Humidity: 20 ~ 95 % (non-condensing)
Storing Humidity: 0 ~ 95 % (non-condensing)
MTBF: 1,580,000 hrs
