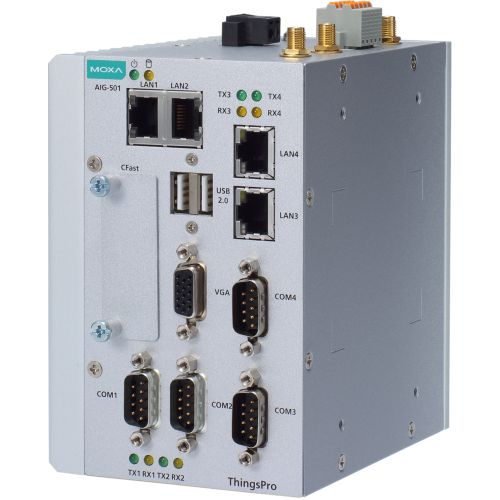

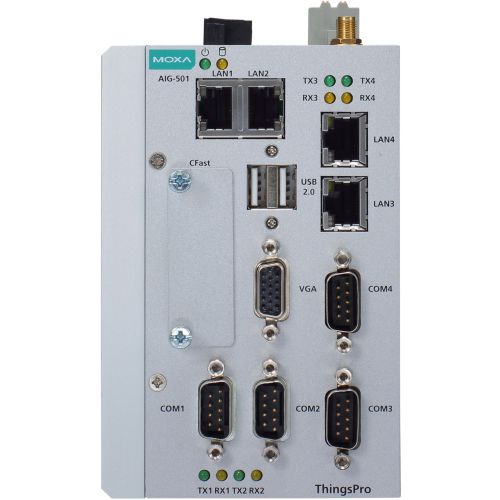

AIG-501-T-EU-AZU-LX MOXA Arm-Based Computers

AIG-501-T-EU-AZU-LX MOXA

AIG-501-T-EU-AZU-LX MOXA

AIG-501-T-EU-AZU-LX

Advanced IIoT gateway with Intel Atom quad-core 1.91 GHz processor, 1 VGA port, 4 DIs, 4 DOs, Europe LTE band, ThingsPro Edge and Azure IoT Edge software, -40 to 70

Quantità':

Prezzo per pezzo

€ 2.423,39

(IVA esclusa)

€ 2.956,54 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 2.423,39
5+ pz. € 2.302,225
10+ pz. € 2.229,528

Prezzo di 1 pz. iva (22%) inclusa: € 2.956,54

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 118244

Model: AIG-501-T-EU-AZU-LX

Bisogno di aiuto?


Certificati

FCC Certificato
UL Certificato
IECEX Certificato
ATEX Certificato

Features and Benefits

  •  Simplifies data acquisition and device management via the ThingsPro Edge software
  •  Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud connectivity
  •  Supports easy device-provisioning with the ThingsPro Proxy utility
  •  Provides robust OTA function to prevent system failure during software upgrades
  •  Equipped with secure boot to prevent malicious software-injection attacks

 Introduction

The AIG-500 Series advanced IIoT gateways are designed for Industrial IoT applications, especially for distributed and unmanned sites in harsh operating environments. ThingsPro Edge and Azure IoT Edge software are preloaded and seamlessly integrated with the AIG-500 Series to enable easy, reliable, yet secure sensor-to-cloud connectivity for data acquisition and device management using the Azure Cloud solution. With the use of the ThingsPro Proxy utility, the device provisioning process is easier than ever. Thanks to the robust OTA function, you never have to worry about system failure during software upgrades. With the secure boot function enabled, you can enable the booting process of AIG-500 Series to prevent malicious software–injection attacks.

Specifications

Computer

CPU: Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
Graphics Controller: Intel® HD Graphics
DRAM: 4 GB DDR3L
Storage Pre-installed: 32 GB CFast GB eMMC
Pre-installed OS: Linux Debian 9, Kernel 4.9

Computer Interface

TPM: TPM v2.0
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
Digital Input: DIs x 4
Digital Output: DOs x 4
USB 2.0: USB 2.0 hosts x 2, type-A connectors
Wi-Fi Antenna Connector: AIG-501-T-AZU-LX: RP-SMA x 2
Number of SIMs: 1
Expansion Slots: mPCIe slot x 1
SIM Format: Mini
Video Output: VGA x 1, 15-pin D-sub connector (female)

Ethernet Interface

Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

Connector: DB9 male
Baudrate: 300 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Flow Control: ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
Isolation: N/
