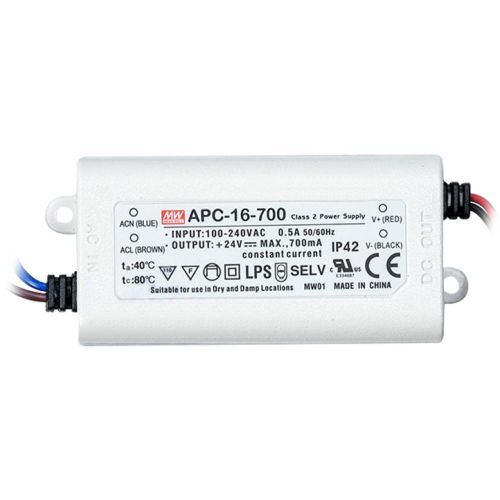

APC-16-700 Mean Well AC DC Driver Led

 Features

• Constant current mode design
• Universal AC input / Full range
• Protections:Short circuit / Over voltage
• Fully isolated plastic case
• Small and compact size
• Cooling by free air convection
• Class II power unit, no FG
• Class 2 power unit
• Pass LPS
• IP42 design
• Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
• 100% full load burn-in test
• Low cost/ High reliability
• 2 years warranty

SPECIFICATION

OUTPUT

RATED CURRENT:  700mA
DC VOLTAGE RANGE:  9~24V
RATED POWER:  16.8W
RIPPLE & NOISE (maX.): 250mVp-p
VOLTAGE TOLERANCE: ±5.0%
CURRENT ACCURACY: ±8.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME: 3000ms, 200ms /230VAC 3000ms, 200ms / l15VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC 12ms/ll5VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC    127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63HZ
EFFlClENCY(Typ.): 83%
AC CURRENT: 0.3A/230VAC     0.5A/115VAC
