APC-25-500, AC/DC Enclosed LED Single output Constant Current (CC) 25W 9-50Vdc 500mA

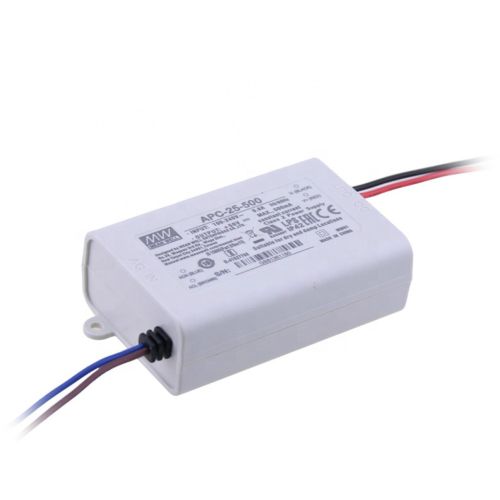

APC-25-500
AC/DC Enclosed LED Single output Constant Current (CC) 25W 9-50Vdc 500mA
Bisogno di aiuto?
Features
- Constant current mode power supply
- Universal AC input / Full range
- Withstand 30OVAC Surge input for 5 seconds
- Protections:Short circuit/ Overvoltage
- Fully isolated plastic case
- Small and compact size
- Cooling by free air convection
- IP42 design
- 100% full load burn-in test
- Suitable for LED related fixture or appliance
- (such as LED Decoration or Advertisement devices)
- Low cost/ High reliability
- 2 years warranty
Specifications
OUTPUT
RATED CURRENT: 500mA
DC VOLTAGE RANGE: 15~50v
RATED POWER: 25.2w
RIPPLE & NOISE (maX.): 300mVp-p
VOLTAGE TOLERANCE: ±5.0%
CURRENT ACCURACY: ±8.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME: 1500ms, 30ms /230VAC 1500ms, 30ms / l15VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC 12ms/ll5VAC at full load
INPUT
VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFlClENCY(Typ.): 83%
AC CURRENT: 0.4A/230VAC 0.8A/115VAC
INRUSH CURRENT(Typ.): COLD START 45A (twidth=310ps measured at 50% lpeak) at 230VAC
