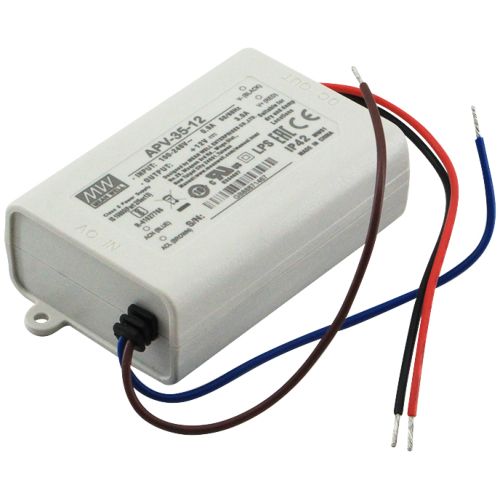

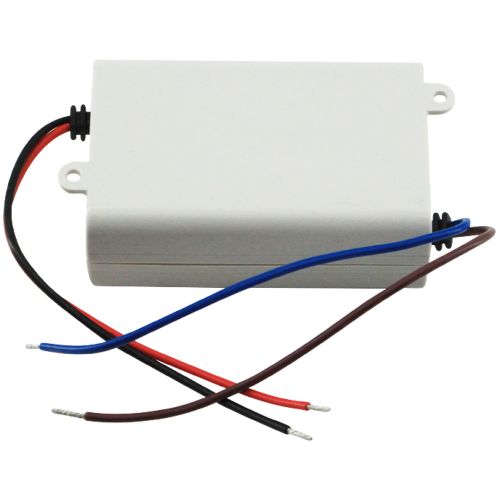

APV-35-12 Mean Well AC DC Driver Led

Features

• Constant voltage mode power supply
• Universal AC input / Full range
• Withstand 300VAC Surge input for 5 seconds
• Protections: Short circuit / Over load / Over voltage
• Fully isolated plastic case
• Cooling by free air convection
• Small and compact size
• IP42 design
• Class 2 power unit
• Pass LPS
• Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
• 100% full load burn-in test
• Low cost, high reliability
• 2 Years Warranty

Specifications

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 3V
CURRENT RANGE: 0~3A
RATED POWER: 36W
RIPPLE & NOISE (max.): 150mVp-p
VOLTAGE TOLERANCE: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 1500ms, 40ms / 23OVAC           1500ms,40ms/115VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC       12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC          127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 83%
AC CURRENT: 0.5A/230VAC   0.75A/115VAC
