AWK-1127-EU MOXA industrial wireless ap

AWK-1127-EU MOXA

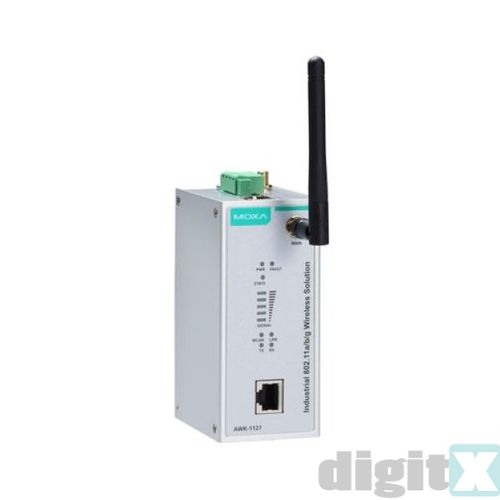

AWK-1127-EU

Industrial Wireless Client IEEE802.11a/b/g, without PoE Support, EU band

Clicca per maggiori dettagli

Articoli Prezzo (IVA esc.)
1+ pz.€ 351,00
3+ pz.€ 336,96
5+ pz.€ 326,43

Prezzo di 1 pz. iva (22%) inclusa: € 428,22

Disponibilità: Non Disponibile

Brand: MOXA

SKU: 92542

Model: AWK-1127-EU

Prodotti Correlati

MOXA

2.4/5.5GHz 2dBi dual-band antenna, ...

1+ pezzi:  € 5,30

MOXA

2.4GHz 5dBi omni-direction antenna, ...

1+ pezzi:  € 16,70

Features and Benefits

  • IEEE 802.11a/b/g compliant
  • Redundant 12 to 48 VDC power inputs
  • Client-based millisecond-level Turbo Roaming
  • PoE 802.11af compliant (PoE model only)
  • Maximum security with WEP/WPA/WPA2/802.11X and powerful filters
  • -40 to 75°C operating temperature range (T model only)
  • 1 RS-232/422/485 serial port

Introduction

The AWK-1127 WLAN client is ideal for industrial hard to wire applications, keeping wireless costs under control, and integrating with existing mobile equipment. The AWK-1127 enables WLAN connection to Ethernet devices and offers an additional serial port for serial device connectivity. The AWK-1127 is rated to operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for wide temperature models, and is rugged enough for any harsh industrial environment. Installation is easy, with either DIN rail or wall mounting capability, wide operating temperature ranges, and IP30 housing with LED indicators make the AWK-1127 a convenient yet reliable solution for any industrial wireless application.

Advanced Security

  • 64-bit and 128-bit WEP (Wired Equivalent Privacy)
  • WPA/WPA2 (Wi-Fi Protected Access) and 802.11i support
  • Enable/disable SSID broadcasts
  • IEEE802.1X/RADIUS support
  • Powerful packet filters for access control

Specifications for Industrial-grade Applications

  • Redundant DC power inputs
  • Power over Ethernet support
  • IP30 compact size aluminum housing
  • Signal strength LEDs for easy deployment and antenna alignment

WLAN Interface

Standards:
     IEEE 802.11a/b/g for Wireless LAN
     IEEE 802.11i for Wireless Security
     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseTX
     IEEE 802.3af for Power-over-Ethernet
     IEEE 802.1D for Spanning Tree Protocol
     IEEE 802.1w for Rapid STP
     IEEE 802.1Q VLAN

Spread Spectrum and Modulation (typical):
     DSSS with DBPSK, DQPSK, CCK
     OFDM with BPSK, QPSK, 16QAM, 64QAM
     802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps
     802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps

Operating Channels (central frequency):
     US:
          2.412 to 2.462 GHz (11 channels)
          5.18 to 5.24 GHz (4 channels)

     EU:
          2.412 to 2.472 GHz (13 channels)
          5.18 to 5.24 GHz (4 channels)

     JP:
          2.412 to 2.472 GHz (13 channels, OFDM)
          2.412 to 2.484 GHz (14 channels, DSSS)
          5.18 to 5.24 GHz (4 channels for W52)

Security:
     Firewall for MAC/IP/Protocol/Port-based filtering
     64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)

Transmission Rates:
     802.11b: 1, 2, 5.5, 11 Mbps
     802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

TX Transmit Power:
     802.11b: Typ. 18±1.5 dBm @ 1 to 11 Mbps

     802.11g:
          Typ. 18±1.5 dBm @ 6 to 24 Mbps, Typ. 17±1.5 dBm @ 36 Mbps,
          Typ. 16±1.5 dBm @ 48 Mbps, Typ. 16±1.5 dBm @ 54 Mbps

     802.11a:
          Typ. 18±1.5 dBm @ 6 to 24 Mbps, Typ. 16±1.5 dBm @ 36 Mbps,
          Typ. 15±1.5 dBm @ 48 Mbps, Typ. 14±1.5 dBm @ 54 Mbps

RX Sensitivity:
     802.11b:
          -97 dBm @ 1 Mbps, -94 dBm @ 2 Mbps, -92 dBm @ 5.5 Mbps,
          -90 dBm @ 11 Mbps

802.11g: -88 dBm @ 6 to 24 Mbps, -85 dBm @ 36 Mbps, -75 dBm @ 48 Mbps, -70 dBm @ 54 Mbps
802.11a: -88 dBm @ 6 to 24 Mbps, -85 dBm @ 36 Mbps, -75 dBm @ 48 Mbps, -70 dBm @ 54 Mbps

Protocol Support

General Protocols: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP

Interface

Default Antennas: 1 RP-SMA (male), 2 dual-band omni-directional antenna, 2 dBi, RP-SMA (male)
Connector for External Antennas: RP-SMA (female)
RJ45 Ports: 1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Serial Port: 1, RS232/422/485, DB9 male connector
Console Port: RS-232 (RJ45-type)
LED Indicators: PWR, FAULT, STATE, SIGNAL, WLAN, LAN

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 50 bps to 921.6 kbps
Serial Data Log: 256 KB

Serial Signals

RS-232: DSR, RTS, GND, TxD, RxD, DCD, CTS, DTR
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485 (2-wire): Data+, Data- and GND
RS-485 (4-wire): Tx+, Rx+, Tx-, Rx+ and GND

Physical Characteristics

Housing: Metal, providing IP30 protection
Weight: 400 g
Dimensions: 50 x 115 x 70 mm (1.97 x 4.53 x 2.76 in)
Installation: DIN rail mounting, wall mounting (with optional kit)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
     Ambient Relative Humidity: 5% to 95% (non-condensing)

Power Requirements

Input Voltage:
     12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant)*
     *PoE is only available for the AWK-1121-PoE and AWK-1127-PoE

Connector: 4-pin removable terminal block
Power Consumption: 12 to 48 VDC, 0.16 to 0.55 A
Reverse Polarity Protection: Present

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
EMC: EN 301 489-1/17, FCC Part 15 Subpart B Class B, EN 55022/55024
Radio: EN 300 328, EN 301 893, DSPR (Japan)

Reliability

MTBF (mean time between failures): 392,209 hrs

Warranty

Warranty Period: 5 years
