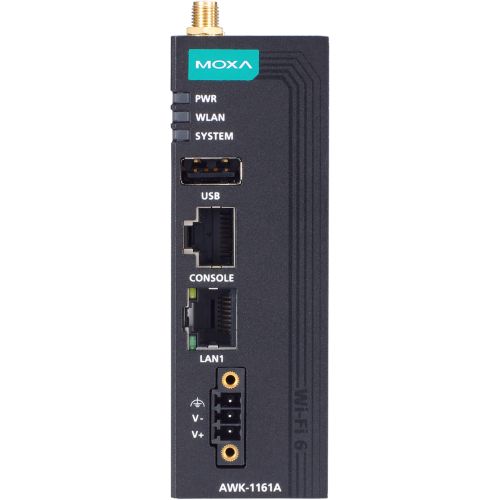

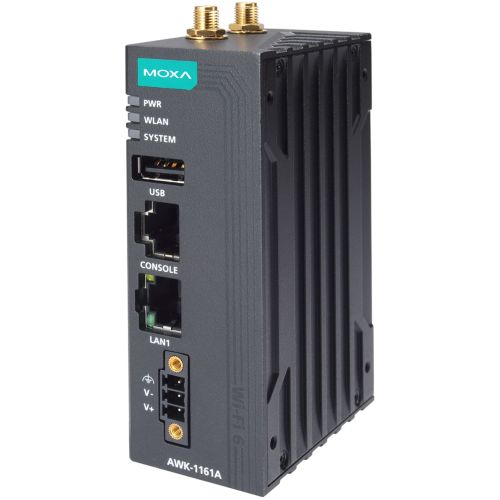

AWK-1161A-UN, Access Point wireless industriale 802.11ax con 1 porta 10/100/1000BaseT(X), grado di protezione IP30, banda UN, temperatura operativa da -25 a 60°C
AWK-1161A-UN
Access Point wireless industriale 802.11ax con 1 porta 10/100/1000BaseT(X), grado di protezione IP30, banda UN, temperatura operativa da -25 a 60°C
SPEDIZIONE GRATUITA
The AWK-1161A Series industrial wireless AP is designedto meet the growing need for faster data transmission speeds whileservicing more clients through IEEE 802
11ax (Wi-Fi 6) technology
The AWK-1161A is compliant with industrial standards and approvalscovering operating temperature, power input voltage, surge, ESD, andvibration
The compact form factor with DIN-rail or optional wallmounting easily fits into industrial machines or control cabinets,offering reliable wireless services
The AWK-1161A supports selectable2
4 and 5 GHz bands and is backwards compatible with existing 802
11a/b/g/n/acdeployments to future-proof your wireless investments
- High-speed IEEE 802.11ax Wi-Fi
- Selectable dual-band Wi-Fi with data rates up to 1,201 Mbps
- Latest WPA3 encryption for enhanced wireless network security
- Universal (UN) models with configurable country or region code for more flexible deployment
- Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
- -40 to 75°C wide operating temperature range (-T models)
- Integrated antenna isolation
| WLAN Standards | 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz 5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz |
|---|---|
| Frequency Band for UN (20 MHz operating channels) | 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.745 to 5.825 GHz (5 channels) Available channels change depending on the selected country or region code. 5.500 to 5.700 GHz (11 channels) 5.260 to 5.320 GHz (4 channels) |
| Wireless Security | WEP encryption (64-bit and 128-bit) WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal |
| Transmission Rate | 2.4 GHz: Up to 573.5 Mbps 5 GHz: Up to 1,201 Mbps |
| Transmitter Power for 802.11a (Dual Chain) | 18±1.5 dBm @ 6 Mbps 18±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11n (5 GHz, Dual Chain) | 18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS7 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS7 40 MHz |
| Transmitter Power for 802.11ac (Dual Chain) | 18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS8 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS9 40 MHz 18±1.5 dBm @ MCS0 80 MHz 18±1.5 dBm @ MCS9 80 MHz |
| Transmitter Power for 802.11ax (Dual Chain) | 18±1.5 dBm @ MCS0 20 MHz 17±1.5 dBm @ MCS11 20 MHz 18±1.5 dBm @ MCS0 40 MHz 17±1,5 dBm @ MCS11 40 MHz 18±1.5 dBm @ MCS0 80 MHz 17±1.5 dBm @ MCS11 80 MHz |
| Transmitter Power for 802.11b (Dual Chain) | 18±1.5 dBm @ 1 Mbps 18±1.5 dBm @ 11 Mbps |
| Transmitter Power for 802.11g (Dual Chain) | 18±1.5 dBm @ 6 Mbps 18±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11n (2.4 GHz, Dual Chain) | 18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS7 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS7 40 MHz |
| Transmitter Power for 802.11ac (2.4 GHz, Dual Chain) | 18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS8 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS7 40 MHz |
| Transmitter Power for 802.11ax (2.4 GHz, Dual Chain) | 18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS11 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS11 40 MHz |
| Receiver Sensitivity for 802.11a (measured at 5.680 GHz) | Typ. -88 @ 6 Mbps Typ. -72 @ 54 Mbps |
| Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz) | Typ. -88 dBm @ MCS0 20 MHz Typ. -68 dBm @ MCS7 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz |
| Receiver Sensitivity for 802.11ac (5 GHz) | Typ. -88 dBm @ MCS0 20 MHz Typ. -65 dBm @ MCS8 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -60 dBm @ MCS9 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -55 dBm @ MCS9 80 MHz |
| Receiver Sensitivity for 802.11ax (5 GHz) | Typ. -88 dBm @ MCS0 20 MHz Typ. -59 dBm @ MCS11 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -56 dBm @ MCS11 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -52 dBm @ MCS11 80 MHz |
| Receiver Sensitivity for 802.11b (measured at 2.437 GHz) | Typ. -96 dBm @ 1 Mbps Typ. -88 dBm @ 11 Mbps |
| Receiver Sensitivity for 802.11g (measured at 2.437 GHz) | Typ. -90 dBm @ 6 Mbps Typ. -74 dBm @ 54 Mbps |
| Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz) | Typ. -90 dBm @ MCS0 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz |
| Receiver Sensitivity for 802.11ac (2.4 GHz) | Typ. -90 dBm @ MCS0 20 MHz Typ. -66 dBm @ MCS6 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -63 dBm @ MCS9 40 MHz |
| Receiver Sensitivity for 802.11ax (2.4 GHz) | Typ. -90 dBm @ MCS0 20 MHz Typ. -59 dBm @ MCS11 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -56 dBm @ MCS11 40 MHz |
| WLAN Operation Mode | Access point Master Sniffer |
| Antenna | External, 2/2 dBi Omni-directional |
| Antenna Connectors | 2 RP-SMA female |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3az for Energy-Efficient Ethernet IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication |
|---|---|
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 1 |
| Management | DHCP Server DHCP Client DNS HTTP IPv4 LLDP SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet UDP VLAN MXconfig |
|---|---|
| Security | HTTPS/SSL RADIUS SSH Certificate Management |
| Time Management | SNTP Client |
| Filter | ICMP MAC address IP protocol Port-based Wi-Fi ACL Client Isolation |
|---|
| Console Port | RS-232 8-pin RJ45 |
|---|
| Storage Port | USB Type A |
|---|
| LED Indicators | PWR, WLAN, SYSTEM |
|---|
| Buttons | Reset button |
|---|
| Housing | Metal |
|---|---|
| IP Rating | IP30 |
| Dimensions | 60 x 100 x 34.2mm (2.36 x 3.94 x 1.35 in) |
| Weight | 330 g (0.73 lb) |
| Installation | DIN-rail mounting Wall mounting (with optional kit) |
| Input Current | 9 to 30 VDC, 1.57 to 0.47 A |
|---|---|
| Input Voltage | 9 to 30 VDC |
| Power Connector | 1 removable 3-contact terminal block(s) |
| Power Consumption | 14 W (max.) |
| Operating Temperature | -25 to 60°C (-13 to 140°F) |
|---|---|
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| EMC | EN 61000-6-2/-6-4 EN 55032/35 |
|---|---|
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMF: 30 A/m |
| Road Vehicles | E mark E1 |
| Safety | IEC 62368-1 UL 62368-1 |
| Vibration | IEC 60068-2-6 |
| Radio | EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC |
| Time | 4,002,106 hrs |
|---|---|
| Standards | Telcordia SR332 |
| Warranty Period | 5 years |
|---|
