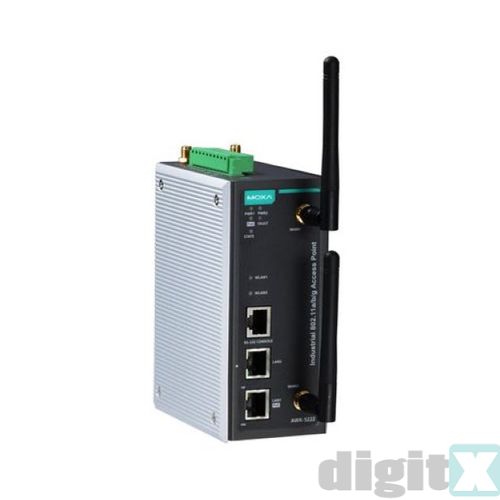

AWK-5222-M12-EU MOXA Access Point

Features and Benefits

• IEEE 802.11a/b/g compliant
• Dual-radio design for 2.4 GHz and/or 5 GHz RF bands
• Supports client-based Turbo Roaming and redundant roaming
• -40 to 75°C operating temperature range (T models)

Introduction

Moxa’s wireless redundancy technology allows you to set up independent wireless connections to avoid interruptions in transmission, even if interference occurs on one of the supported frequencies. The AWK-5222 is equipped with the newest proprietary wireless redundancy technology, which has two independent RF modules, and supports a greater variety of wireless configurations and applications. The redundant wireless connections increase the reliability of the entire wireless network. The AWK-5222 is compliant with the industrial standards and approvals, covering operating temperature, power input voltage, surge, ESD and vibration. The AWK-5222 is rugged enough to help you establish the most robust wireless connection for critical industrial wireless applications.

Redundancy to Increase System Reliability

• Dual DC power inputs and PoE
• Dual-radio design with 2.4 and/or 5 GHz dual-band operation for redundant WLAN connections
• Redundant roaming for fast and stable handoff
• Ethernet redundancy via RSTP

Specifications for Industrial-grade Applications

• Industrial-grade QoS and VLAN for efficient data traffic management
• Long-distance wireless transmission over 10 km
• Integrated DI/DO for on-site monitoring and warnings
• Signal strength LEDs for easy deployment and antenna alignment

WLAN Interface

Standards:
     IEEE 802.11a/b/g for Wireless LAN
     IEEE 802.11i for Wireless Security
     IEEE 802.3 for 10BaseT(X)
     IEEE 802.3u for 100BaseT(X)
     IEEE 802.3af for Power-over-Ethernet
     IEEE 802.1D for Spanning Tree Protocol
     IEEE 802.1w for Rapid STP
     IEEE 802.1Q for VLAN
Spread Spectrum and Modulation (typical):
     DSSS with DBPSK, DQPSK, CCK
     OFDM with BPSK, QPSK, 16QAM, 64QAM, 64QAM @ 54 Mbps, 16QAM @ 24/36 Mbps, QPSK @ 12/18 Mbps, CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBSK@ 1 Mbps
     802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps
     802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps
Operating Channels (central frequency):
     US:
          2.412 to 2.462 GHz (11 channels)
          5.18 to 5.24 GHz (4 channels)
     EU:
          2.412 to 2.472 GHz (13 channels)
          5.18 to 5.24 GHz (4 channels)

     JP:
          2.412 to 2.472 GHz (13 channels, OFDM)
          2.412 to 2.484 GHz (14 channels, DSSS)
          5.18 to 5.24 GHz (4 channels for W52)
Security:
     SSID broadcast enable/disable
     Firewall for MAC/IP/Protocol/Port-based filtering
     64-bit and 128-bit WEP encryption, WPA /WPA2 Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Transmission Rates:
     802.11b: 1, 2, 5.5, 11 Mbps
     802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
TX Transmit Power:
     802.11b: Typ. 23±1.5 dBm @ 1 to 11 Mbps
     802.11g: Typ. 20±1.5 dBm @ 6 to 24 Mbps, Typ. 19±1.5 dBm @ 36 Mbps, Typ. 18±1.5 dBm @ 48 Mbps, Typ. 17±1.5 dBm @ 54 Mbps
     802.11a: Typ. 18±1.5 dBm @ 6 to 24 Mbps, Typ. 16±1.5 dBm @ 36 to 48 Mbps, Typ. 15±1.5 dBm @ 54 Mbps
RX Sensitivity:
     802.11b: -97 dBm @ 1 Mbps, -94 dBm @ 2 Mbps, -92 dBm @ 5.5 Mbps, -90 dBm @ 11 Mbps
     802.11g: -93 dBm @ 6 Mbps, -91 dBm @ 9 Mbps, -90 dBm @ 12 Mbps, -88 dBm @ 18 Mbps, -84 dBm @ 24 Mbps, -80 dBm @ 36 Mbps, -76 dBm @ 48 Mbps, -74 dBm @ 54 Mbps
     802.11a: -90 dBm @ 6 Mbps, -89 dBm @ 9 Mbps, -89 dBm @ 12 Mbps, -85 dBm @ 18 Mbps, -83 dBm @ 24 Mbps, -79 dBm @ 36 Mbps, -75 dBm @ 48 Mbps, -74 dBm @ 54 Mbps

Protocol Support

General Protocols: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
AP-only Protocols: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)

Interface

Default Antennas: 2 dual-band omni-directional antennas, 2 dBi, RP-SMA (male)
Connector for External Antennas: RP-SMA (female)
RJ45 Ports: 2, 10/100BaseT(X), auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Console Port: RS-232 (RJ45-type)
Reset: Present
LED Indicators: PWR1, PWR2, PoE, FAULT, STATE, WLAN1, WLAN2, 10M, 100M
Alarm Contact (digital output): 1 relay output with current carrying capacity of 1 A @ 24 VDC
Digital Inputs:
     2 electrically isolated inputs
     +13 to +30 V for state “1”
     +3 to -30 V for state “0”
     Max. input current: 8 mA

Physical Characteristics

Housing: Metal, IP30 protection
Weight: 1.1 kg
Dimensions: 62 x 135 x 105 mm (2.4 x 5.3 x 4.1 in)
Installation: DIN-Rail mounting (standard), Wall mounting (optional)

Environmental Limits

Operating Temperature: Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5% to 95% (non-condensing)

Power Requirements

Input Voltage: 12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant)
Connector: 10-pin removable terminal block
Power Consumption: 12 to 48 VDC, 800 mA (max.)
Reverse Polarity Protection: Present

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
EMC: EN 301 489-1/17, FCC Part 15 Subpart B, EN 55022/55024, IEC 61000-6-2/4
Radio: EN 300 328, EN 301 893

Reliability

MTBF (mean time between failures): 291,367 hrs

Warranty

Warranty Period: 5 years
