BB-WSW2C00015-1 ADVANTECH LoRaWAN

 Features

• Long-range wide area IoT application
• Optional solar or battery power input for low power consumption
• LoRaWAN protocol for closed and public system applications
• Provides connectivity to industry-standard analog or digital sensors
• Rugged, IP66-rated, fiber-reinforced polyester PBT enclosure

Introduction

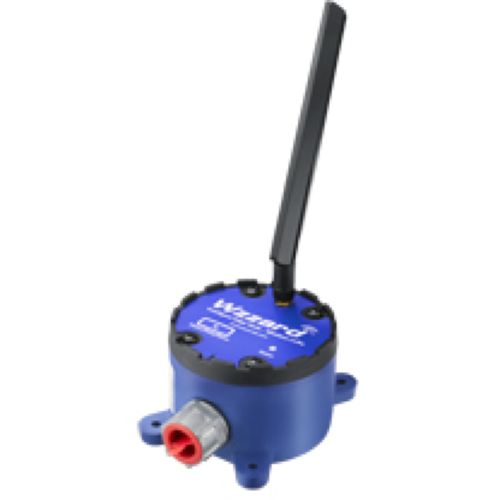

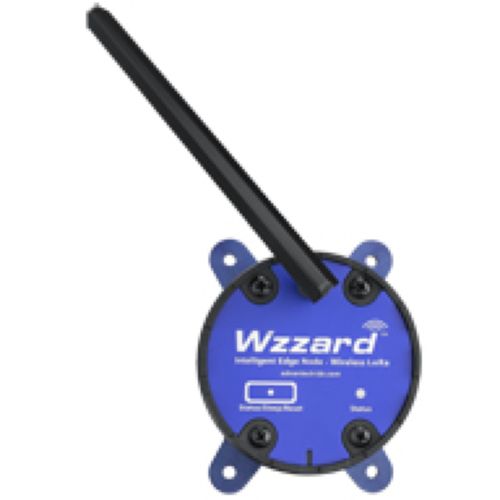

The Wzzard LRPv2 LoRaWAN node intelligent sensor platform enables you to quickly and easily create a complete connectivity stack between your sensors and applications via a
network or the Internet. The platform uses intelligent edge nodes and a wireless LoRaWAN network to transmit analog or digital signals or Modbus RTU sensor data to a WISE-6610
LoRaWAN gateway or other LoRaWAN-compliant gateway device. The Wzzard LRPv2 LoRaWAN node can accommodate virtually any industry standard external sensors. Connections
can be made via either conduit fittings or cable glands. This line of nodes provides various sensor interface options including digital I/O as well as general purpose analog inputs.

Specifications

Power

Optional: External Input 9 ~ 36 VDC

Mechanical

Physical Connection: 12.7-mm (1/2") conduit, sensor interface cable included; 8-wire, 26-gage, 1.8-m (6’)
Sensor Inputs:
 Analog input (±10 VDC, ±5 VDC, ±1 VDC, 0 ~ 20 mA),
 digital input (0 ~ 48 VDC)
 digital output (0 ~ 30 VDC)

Optional External Antenna: RP-SMA, omnidirectional, 1.5 dBi, 868 ~ 915 MHz; length, 170 mm (6.69")
Mounting: Magnetic mounting via an internal magnet Holding force, 2.13 kg (4.7 lbs); four mounting ears, M5 (#10)
Enclosure: IP66-rated, fiber-reinforced polyester PBT
Weight: 400 g

Technology

Wireless: LoRaWAN 868/915/923 MHz
LED: Network connectivity

Environmental

Installation: Indoor or outdoor
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operating Humidity: 10 ~ 95% non-condensing
