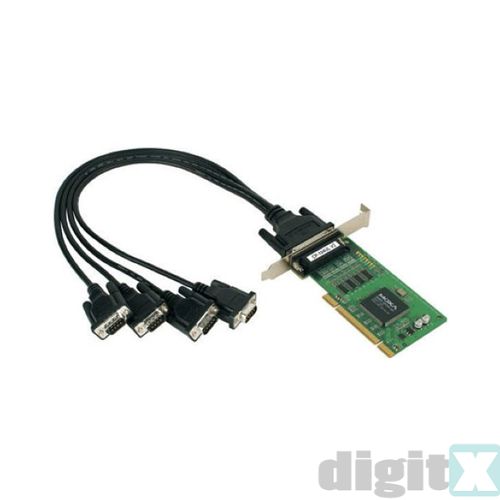

CP-104UL-T MOXA pci express serial boards

Features and Benefits

• Over 800 kbps data throughput for top performance
• 921.6 kbps maximum baudrate for super fast data transmission
• 128-byte FIFO and on-chip H/W, S/W flow control
• Compatible with 3.3/5V PCI and PCI-X
• Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
• 15 kV ESD protection on the board
• Wide temperature model available for -40 to 85°C environments

Introduction

The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even Unix. In addition, each of the boards’ RS-232 serial ports supports a super fast 921.6 kbps baudrate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3V and 5V PCI buses, allowing the boards to be installed in virtually any available PC server.

Hardware

Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connectors: DB44 female

Serial Interface

Number of Ports: 4
Serial Standards: RS-232
Max. No. of Boards per PC: 4

Serial Line Protection

ESD Protection: 15 kV on the board

Performance

Baudrate: 50 bps to 921.6 kbps

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
I/O Address: Assigned by BIOS
IRQ: Assigned by BIOS

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Operating Systems

Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x

Physical Characteristics

Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 55°C (32 to 131°F)
     Wide Temp. Models: -40 to 85°C (-40 to 185°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Standards and Certifications

EMC: CE, FCC
EMI: EN 55022, FCC Part 15 Subpart B Class B
EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3
Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 558,961 hrs
Database: MIL-HDBK-217F, GB 25°C

Power Requirements

Power Consumption: 120 mA @ +5 V

Warranty

Warranty Period: 5 years
