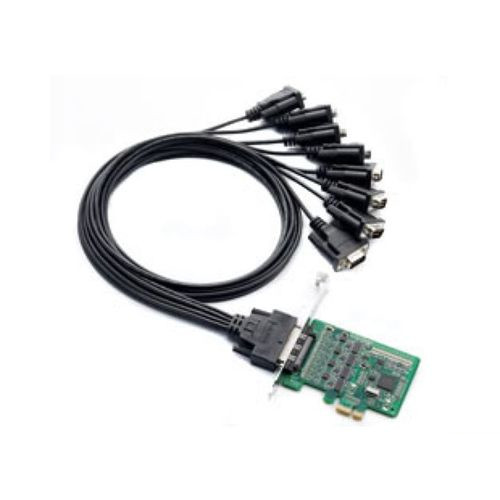

CP-118EL MOXA pci express serial boards

Features and Benefits

• PCI Express x1 compliant
• 921.6 Kbps maximum baudrate for super fast data transmission
• 128-byte FIFO and on-chip H/W, S/W flow control
• Choose from a wide range of connection cables and boxes
• Low profile form factor fits small-sized PCs
• Drivers provided for Windows (Vista, 2003, XP, 2000), WinCE 5.0, Linux, and Unix
• 15 KV ESD protection on the board

Introduction

The CP-118EL is a smart, 8-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board's 8 serial ports can be configured independently for RS-232, RS-422, or RS-485 (either 2-wire or 4-wire), and the ports supports a super fast 921.6 Kbps baudrate. The CP-118EL provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express "x1" classification allows it to be installed in any PCI Express slot. The CP-118EL is a low profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs. Moxa continues to support a wide variety of operating systems, and the CP-118EL board is no exception. Reliable Windows COM and Linux/Unix TTY drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Hardware

Comm. Controller MU860 (16C550C compatible)
Bus PCI Express x1
Connector(s) VHDCI 68

Serial Interface

Serial Standards: RS-232/422/485
Number of Ports: 8
Number of Boards: 4 per PC (max.)

Serial Line Protection

ESD: Protection 15 KV on the board

Performance

Baudrate: 50 bps to 921.6 Kbps

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
I/O Address: Assigned by BIOS
IRQ: Assigned by BIOS

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND

Physical Characteristics

Dimensions: 64.41 x 132 mm (2.54 x 5.20 in)

Driver Support

Operating Systems: Windows (2000, XP/2003/Vista x86/x64), Windows CE 5.0, Windows XP Embedded, DOS, Linux 2.4/2.6, FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operating Humidity: 5 to 95% RH
Regulatory Approvals: EN55022, EN55024, EN61000-3-2, EN61000-3-3, EN61000-6-2, IEC-61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, FCC Part 15 Class B

Power Requirements

Power Consumption: 860 mA @ 3.3 V

Warranty

Warranty period: 5 years
