CP-118U-I MOXA universal pci serial boards

CP-118U-I MOXA

CP-118U-I

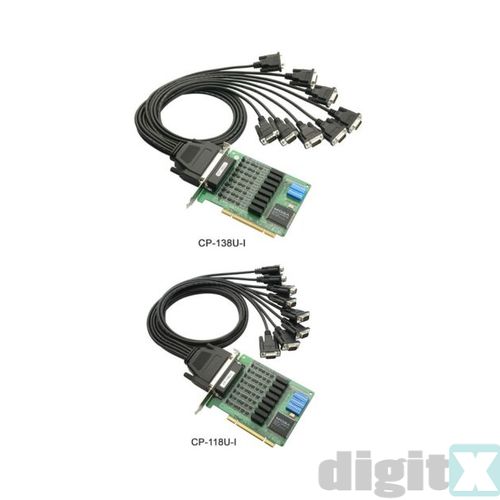

8 port RS-232/422/485 async board, Universal PCI bus, 921.6Kbps, embedded 15KV ESD protection, 2KV Optical Isolation Protection.

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 747,50
3+ pz.€ 725,08
5+ pz.€ 710,12

Prezzo di 1 pz. iva (22%) inclusa: € 911,95

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 64352

Model: CP-118U-I

Line: Schede seriali multiporta

Prodotti Correlati

Features and Benefits

  • Over 700 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
  • Easy maintenance with on-board LED display, and management software
  • 15 kV ESD protection and 2 kV electrical isolation on the board
  • Wide temperature model available for -40 to 85°C environments

Introduction

The CP-118U-I and CP-138U-I are 8-port serial boards designed for long distance, multi-point, PC-based data acquisition applications. Industrial automation system integrators will be eager to use these boards for many of their industrial automation projects. RS-485 communication requires precise timing control to enable and disable the line driver, and the Moxa Turbo Serial Engine™ chip that powers the CP-118U-I and CP-138U-I boards come with on-chip ADDC® (automatic data direction control) to make RS-485 as easy to use as RS-232. The CP-118U-I’s 8 RS-232/422/485 ports and the CP-138U-I’s 8 RS-422/485 ports can achieve data rates up to 921.6 kbps, and in RS-485 mode, one serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. In addition, the 2 kV electrical isolation protection on the CP-118U-I and CP-138U-I boards helps prevent equipment damage for long distance RS-485 communication. With 20-plus years of experience in serial board design, Moxa is now concentrating on a new high performance serial data transmission chip. The Turbo Serial Engine™ chip provides serial boards with a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode. Thanks to the Turbo Serial Engine™, Moxa is able to offer the world’s best performing smart serial boards. Moxa continues to support a wide variety of operating systems, and the CP-118U-I and CP-138U-I boards are no exception. Reliable Windows COM and Linux/Unix TTY drivers are provided for most Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Hardware

Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: DB78 female

Serial Interface

Number of Ports: 8
Serial Standards:
     CP-118U-I: RS-232/422/485
     CP-138U-I: RS-422/485
Max. No. of Boards per PC: 4

Serial Line Protection

ESD Protection: 15 kV on the board
Electrical Isolation: 2 kV

Performance

Baudrate: 50 bps to 921.6 kbps

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
I/O Address: Assigned by BIOS
IRQ: Assigned by BIOS

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND

Operating Systems

Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x

Physical Characteristics

Dimensions: 105 x 133 mm (4.13 x 5.23 in)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 55°C (32 to 131°F)
     Wide Temp. Models: -40 to 85°C (-40 to 185°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Standards and Certifications

EMC: CE, FCC
EMI: EN 55022, FCC Part 15 Subpart B Class B
EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3
Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 1,147,210 hrs
Database: Telcordia (Bellcore), GB

Power Requirements

Power Consumption:
     CP-118U-I: 860 mA @ +5 V
     CP-138U-I: 330 mA @ +5V

Warranty

Warranty Period: 5 years
