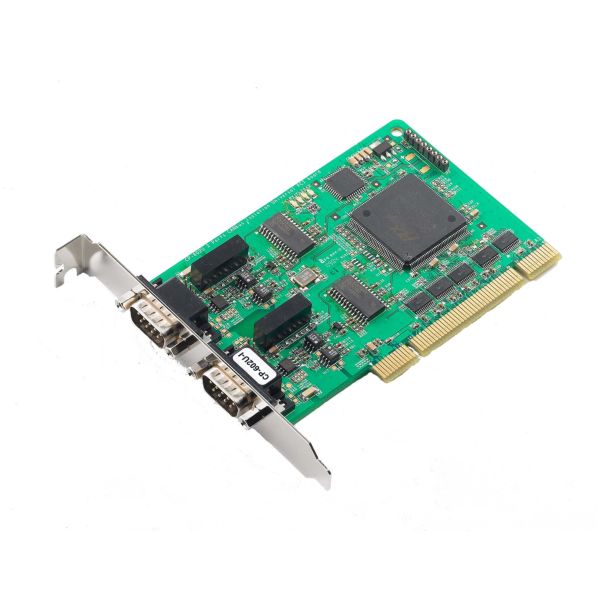

CP-602U-I w/o Cable
2 Port CANbus Universal PCI Board, w/Isolation, 0 to 55 Temperature
Certificati




Features and Benefits
- CAN 2.0A and CAN 2.0B supported
- Two independent CAN communication ports
- CAN transfer rate up to 1 Mbps
- 2 kV electrical isolation
- LED for transmit/receive status on each port
- Optional 120 ohm terminal resistor for CAN bus network
- DLL library and examples included
- Windows driver provided
Introduction
Moxa’s new CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a stand-alone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide the bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
Hardware
Card Interface: Universal PCI
Connectors: DB9 male x 2
CAN Controller:NXP SJA1000
CAN Transceiver: PCA82C251
CAN Specification: CAN 2.0 A/B
Signal Support: CAN_H, CAN_L, GND
Transfer Rate: 1 Mbps
Max. Number of Boards per PC: 4
Electrical Isolation: 2 kV
Termination Resistor: 120 ohm (selected by jumper)
Driver Support
Operating Systems: Windows 2000, Windows XP/2003/Vista/2008 (x86/x64)
Linux Real TTY Drivers: Linux 2.6.x, 3.x
Software
Libraries: Visual C/C++, Borland C/C++
Environmental Limits
Operating Temperature:
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m
Standards and Certifications
EMC: CE, FCC
EMI: EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)
Green Product: RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time: 1,989,990 hrs
Database: Telcordia (Bellcore), GB
Power Requirements
Power Consumption: 365 mA @ 5 VDC
Warranty
Warranty Period: 5 years
