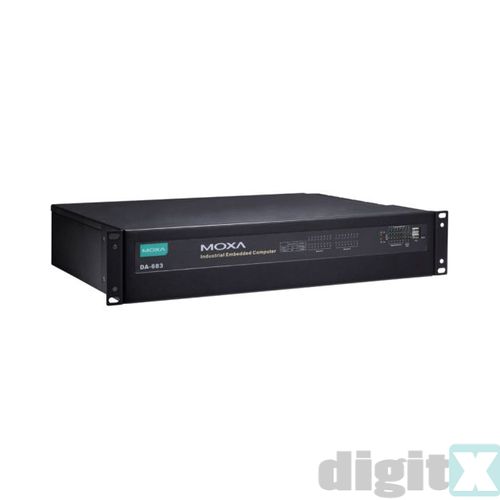

DA-683-SP-LX MOXA x86 based embedded computers

Features and Benefits

• Substation Reference BookIntel Atom D510 1.66 GHz processor
• 1 DDR2 SO-DIMM socket, supporting DDR2 667 up to 2 GB (max.)
• 6 10/100/1000 Mbps Ethernet ports
• 2 RS-232 serial ports
• 4 USB 2.0 ports for high speed peripherals
• 4 DIs, 4 DOs
• CompactFlash socket for storage expansion
• 2 SATA interfaces for hard disk drive expansion
• 2 PCI expansion slots for inserting expansion modules
• IEC 61850-3 compliant (DPP-T models only)
• IEEE 1588 compliance for Precision Time Protocol (Linux models only)
• Dual power input models available
• Ready-to-run Embedded Linux, Windows Embedded Standard 2009, or Windows Embedded Standard 7 platform
• -40° to 70°C wide temperature models available

Introduction

DA-683 industrial computers excel in a wide array of power automation applications. The DA-683 series is based on the Intel x86 processor and supports DVI-I, 6 Gigabit Ethernet ports, 2 RS-232 serial ports, CompactFlash, and USB. They come standard in a 19-inch, 2U high form factor. The Intel Atom D510 processor gives the DA-683 enough punch to perform demanding industrial tasks without consuming a lot of power, for a highly cost-effective overall system. DA-683 computers are IEEE 1588 compliant and support precision time protocol and clock synchronization to provide the time accuracy required for event logging in power substation systems. IEC-61850-3 compliance confirms that the DA-683 can deliver stable and reliable system operations in power applications. Additional value and convenience is provided through a modular design with two independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including an 8-port RS-232/422/485 module, 8-port RS-422/485 module, 4-port 10/100 Mbps LAN module, 8-port 10/100 Mbps switch module, and a universal PCI expansion module. The DA-683 series includes wide temperature models that operate reliably in a -40 to 70°C operating temperature range for the same great performance in applications in extremely harsh environments. DA-683 computers run Linux, Windows Embedded Standard 2009, or Windows Embedded Standard 7 (pre-installed), providing a familiar environment for developing sophisticated application software. Moxa provides comprehensive software support to help programmers develop bug-free code quickly and at a lower cost.

Computer

CPU: Intel Atom D510 1.66 GHz processor
OS (pre-installed): Linux, Windows Embedded Standard 2009, or Windows Embedded Standard 7
System Chipset: Intel Pineview-D + ICH8M
BIOS: 16 Mbit Flash BIOS, PCI Plug & Play, ACPI function support
FSB: 667 MHz
System Memory: 2 GB capacity, 1 GB (LX and XPE)/ 2 GB (W7E) pre-installed: 1 or 2 slots of 2 GB 200-pin DDR2-667 SO-DIMM
Expansion Bus: PCI/104 interface reserved
USB: USB 2.0 compliant hosts, Type A connector x 4, supports system boot up

Storage

Built-in: 2 GB (LX and XPE) / 8 GB (W7E) industrial DOM onboard to store OS
Storage Expansion: CompactFlash socket for CF card expansion, supporting CF Type-I/II
HDD Support: 2 SATA connectors for drive expansion (with optional HDD kit)

Other Peripherals

KB/MS: 1 PS/2 interface, supports standard PS/2 keyboard and mouse through Y-type cable

Display

Graphics Controller: Intel® GMA3150 graphics controller in Intel D510 card
DVI Interface:
     Analog RBG display; output resolution up to 2048 x 1536 @ 60 Hz
     Digital DVI display; output resolution up to 1024 x 768 @ 60 Hz

Ethernet Interface

LAN: 6 auto-sensing 10/100/1000 Mbps ports
Magnetic Isolation Protection: 1.5 KV built-in

Serial Interface

Serial Standard: 2 RS-232 ports (DB9 male)

Serial Signals

RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND, RI

Digital Input

Input Channels: 4, source type
Input Voltage: 0 to 30 VDC
Digital Input Levels for Dry Contacts:
     Logic level 0: Close to GND
     Logic level 1: Open
Digital Input Levels for Wet Contacts:
     Logic level 0: +3 V max.
     Logic level 1: +10 V to +30 V (source to DI)
Connector Type: 10-pin screw terminal block (4 DI points, 4 DO points, DI source, GND)
Isolation: 3 KV optical isolation

Digital Output

Output Channels: 4, sink type
Output Current: Max. 200 mA per channel
On-state Voltage: 24 VDC nominal, open collector to 30 V
Connector Type: 10-pin screw terminal block (4 DI points, 4 DO points, DI source, GND)
Isolation: 3 KV optical isolation

LEDs

System: Power, Storage
Gigabit LAN: 100M x 6, 1000M x 6
Serial: TX/RX
Programmable: LED x 8
Communication: Module A x 16, Module B x16

Switches and Buttons

Reset Button: To reset system hardware (on front panel)
Power Switch: on/off (on rear panel)

Physical Characteristics

Housing: SECC sheet metal (1 mm)
Weight: 4 kg
Dimensions: 315 x 440 x 90 mm (12.40 x 17.32 x 3.54 in) (without rackmount ears)
Mounting: Standard 19-inch rackmount

Environmental Limits

Operating Temperature:
     Standard models: -10 to 60°C (14 to 140°F)
     DPP-T models: -40 to 70°C (-40 to 158°F)
Storage Temperature:
     Standard models: -20 to 80°C (-4 to 176°F)
     DPP-T models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-vibration: 7 mm (2-9 Hz), 20 m/s/s (9-200 Hz), 15 m/s/s (200-500 Hz) @ IEC-61850-3, IEC 60870-2-2/Cm/(3M6)/(4M6), sine wave, 2-500 Hz, 1 Oct/min, 10 cycles, 2 hrs 40 mins per axis
Anti-shock: 300 m/s2 @ IEC-61850-3, IEC 60870-2-2/Cm/(3M6)/(4M6), half sine wave, 11 ms

Power Requirements

Input Voltage: 100 to 240 VAC, 50/60 Hz, 0.9-0.4 A
Power Consumption: 40 W

Standards and Certifications

Safety: UL/cUL (UL 60950-1, CSA C22.2 No. 60950-1-03), LVD (EN 60950-1), CCC (GB4943)
EMC: CE (EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024), FCC (Part 15 Subpart B, CISPR 22 Class ), CCC (GB9254, GB 17625.1), IEC 61850-3 (DPP-T models only)
Green Product: RoHS, CRoHS, WEEE

Reliability

Alert Tools: Built-in buzzer and RTC (real-time clock) with lithium backup battery
Automatic Reboot Trigger: Built-in WDT (watchdog timer) supporting 1-255 level time interval system reset, software programmable
MTBF (mean time between failures): 134,407 hrs

Warranty

Warranty Period: 3 years

Linux

OS: Linux 2.6.18, Debian Etch 5
File System: EXT2, JFFS2
Internet Protocol Suite: TCP, UDP, IPv4, SNMPv1/v2c/v3, ICMP, ARP, HTTP, CHAP, PAP, SSH 1.0/2.0, SSL, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE, PTP
Internet Security: OpenVPN, iptables firewall
Web Server (Apache): Allows you to create and manage web sites; supports PHP and XML
Dial-up Networking: PPP Daemon for Linux that allows Unix machines to connect to the Internet through dialup lines, using the PPP protocol, as a PPP server or client. Works with ‘chat’, ‘dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP, and (for Linux) IPX (Novell).
File Server: Enables remote clients to access files and other resources over the network
Watchdog: Features a hardware function to trigger system reset in a user specified time interval (Moxa API provided)
Application Development Software:
     Moxa API Library (Watchdog timer, Moxa serial I/O control)
     GNU C/C++ cross-compiler
     GNU C library
     Perl
Terminal Server (SSH): Provides secure encrypted communications between two un-trusted hosts over an insecure network

Windows Embedded Standard 7

Core OS:
     32-bit support
     Remote Client
     Remote Procedure Call
Applications and Services Development:
     .Net Framework 3.5
     Remote Desktop Protocol 7.1
     COM OLE Application Support
     COM+ Application Support
     MSMQ
Internet Services:
     Internet Explorer 8.0
     IIS 7.0
File Systems and Data Storage:
     Windows Data Access Components
     Windows Backup and Restore
Diagnostics:
     Common Diagnostic Tools
     Problem Reports and Solutions
Fonts: Chinese (Trad. and Simp.), Japanese, Korean, Western, Middle Eastern, South East Asian, and South Asian Fonts
Graphics and Multimedia:
     MPEG DTV-DVD Audio Decoder (MPEG-2, AAC)
     MPEG Layer-3 Audio Codecs(MP3)
     MPEG4 Decoders
     Windows Media Video VC-1 (WMV) Codecs
     DirectX and Windows Device Experience
     Windows Media Player 12
International:
     IME Simplified Chinese Support
     IME Traditional Chinese Support
     IME Japanese Support
     IME Korean Support
Management:
     Group Policy Management
     Windows Management Instrument (WMI)
     Windows Update
Networking:
     Extensible Authentication Protocol (EAP)
     Internet Authentication Service
     Telnet Server
     Bluetooth
     Domain Services
     Network Access Protection
     Network and Sharing Center
     Quality of Service
     Remote Access Service (RAS)
     Telephony API Client
     Windows Firewall
     Wireless Networking
Security:
     Credential Roaming Service
     Credentials and Certificate Management
     Windows Authorization Manager (AZMAN)
     Windows Security Center
     Active Directory Rights Management
     Security Base
     Encrypted File System (EFS)
Embedded Features:
     Enhanced Write Filter (EWF)
     File-Based Write Filter (FBWF)
     Message Box Default Reply
     Registry Filter
     WSDAPI for .NET
Embedded Self-Health Diagnostics: SNMP-based remote scripting layer for monitoring, reporting, and control

Windows XP Embedded

OS: Windows Embedded Standard 2009
File System: NTFS
Internet Protocol Suite: DHCP, DNS, FTP, HTTP, SNTP, NTP, Telnet, SMTP, SNMPv2, TCP, UDP, IPv4, ICMP, IGMP, IPsec, TAPI, ICS, PPP, CHAP, EAP, PPPoE, PPTP, NetBIOS, PTP
Web Server (IIS): Allows users to create and manage websites
Remote Registry Service: Enables remote users to modify registry settings on this computer
Watchdog: Features a hardware function to trigger system reset in a user specified time interval (Moxa API provided)
Enhanced Writer Filter: Redirect disk write operations to volatile (RAM) or non-volatile (disk) storage
File-based Writer Filter: Redirects all write requests directed at protected volumes to the overlay cache, which records and displays the changes while preserving the protected status of the target volume.
Application Development Software:
     Moxa API Library
     Microsoft .Net Framework 3.5 with SP1
     Active Directory Service Interface (ADSI) Core
     Active Template Library (ATL)
     Common Control Libraries
     Common File Dialogs
     Direct3D, DirectPlay, DirectShow, and Direct show filters
     Mapi32 Libraries
     Message Queuing (MSMQ) Core
     Microsoft Visual C++ Run Time Libraries
     Power Management dynamic-link library
     RPC
     Windows API, Script Engines, and WMI
