DA-SP38-I-TB
8 isolated RS-422/485 Serial Port Module with Terminal Block for DA Series
Features and Benefits
- PCI slots for interface expansion
- 8 RS-232/422/485 software-selectable serial modules with isolation protection
- 4 10/100 Mbps LAN modules
- 4-port 100 Mbps fiber LAN module (coming soon)
- 8 10/100 Mbps unmanaged switch modules
- Universal PCI expansion module
- 8 RS-422/485 serial modules with terminal block connectors
- Fully compatible with Moxa embedded computers that have peripheral expansion slots
Introduction

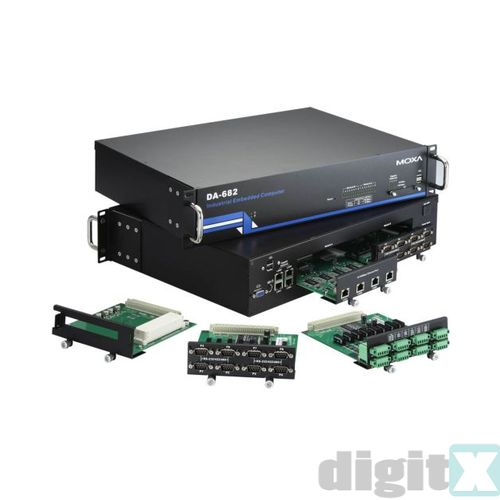

Moxa’s peripheral expansion modules, which come with serial ports, LAN ports, switch ports, and PCI slots, give end-users the greatest flexibility for setting up industrial applications. Different types of modules are available, including serial port modules, LAN port modules, switch port modules, and PCI modules, and all are fully compatible with Moxa’s embedded computers that come with perpheral expansion slots. The serial port modules include an 8-port RS-232/422/485 module with either DB9 or terminal block connectors, and an 8-port RS-422/485 module with terminal block connectors. Some modules are even designed with 2 KV digital isolation, making them fully suitable for the great demands of industrial applications that use serial communication. In addition, a 4-port LAN module, 8-port switch, and 4-port fiber LAN module are available for setting up industrial communication applications with Ethernet-based devices. A universal PCI development kit is also available for PCI-based devices for expanding industrial applications at a reasonable cost. All modules are designed to offer the greatest flexibility for setting up applications and performing industrial tasks. In particular, users can swap out modules quickly and easily.
Serial Interface
Serial Standards: 8 RS-422/485 ports, software selectable (DB9 male or terminal block connector)
ESD Protection: 15 kV for all signals
Isolation: 2 kV digital isolation
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates; see user’s manual for details)
Serial Signals
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Physical Characteristics
Weight: 245 g
Dimensions: 130 x 150 x 42 mm (5.12 x 5.91 x 1.65 in)
