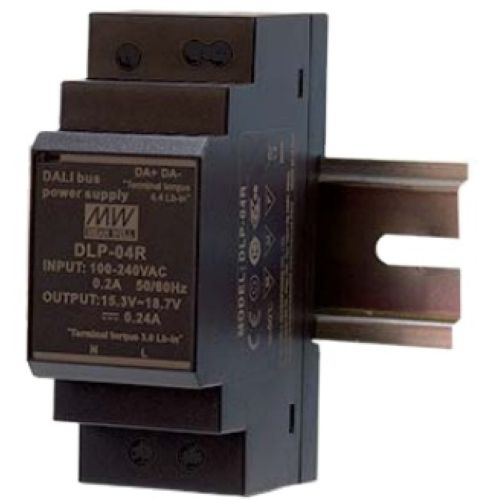

DLP-04R Mean Well AC DC Driver Led

Features

• Compact size with 2SU(35mm) width(type R)
• Universal AC input/ Full range
• Withstand 300VAC Surge input for 5 seconds
• Isolation class II
• No load power consumption<O.5W(type L)
• Protections: Short circuit / Over voltage
• Cooling by free air convection
• 3 color LED for status indicator(type R)
• Installed on DIN rail TS-35/7.5 or 15(type R)
• 100% full load burn-in test
• 3 years warranty

Applications

DALI Bus
DALI Bus Powered Units

Description

The DALI Power Supply DLP-O4 is a power supply with high efficiency and a small size, supplying 240mA for
DALI control gears and DALI devices which without power supply circuits.The -20~+60°C wide temperature
operating range can meet all kinds of applications.
It is perfectly suitable for power up any products labeled with the DALI trademark. with over 35 years of industrial
power supply experience,DLP-04 is engineered to be a reliable and safe solution for DALI bus environment.

Specifications

OUTPUT

RATED DC VOLTAGE: 16V
DC VOLTAGE RANGE: 15.3~18.7V
RATED CURRENT: 240mA(max)
RATED POWER: 3.84W
RIPPLE & NOISE (max.): 50mVp-p
SETUP, RISE TIME: 250ms, 50ms/115VAC,230VAC
HOLD UP TIME (Typ.): 70ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63HZ
AC CURRENT (Typ.): 0.1A/115VAC 0.06A/230VAC; Model label: O.4A/100-24OVAC
INRUSH CURRENT (Typ.): COLD START 20A/230VAC
LEAKAGE CURRENT: O.5mA/ 24OVAC
