DN-19 FAN-4-HO DIGITUS Universali

DN-19 FAN-4-HO DIGITUS

DN-19 FAN-4-HO DIGITUS

DN-19 FAN-4-HO

SISTEMA DI VENTILAZIONE CON TERMOSTATO MONTAGGIO FRONTALE IN ARMADI 19" CON 4 VENTOLE

Quantità':

Prezzo per pezzo

€ 178,12

(IVA esclusa)

€ 217,31 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 217,31

Disponibilità: limitata

Brand: DIGITUS

SKU: 7332

Model: DN-19 FAN-4-HO

Line: ventole per rack

Bisogno di aiuto?


Caratteristiche tecniche

  • Sistema di ventilazione universale, per montaggio in tutti gli armadi rack 19".
  • Si installa sui montanti 19" anteriori, quindi si puo installare in ogni tipo di armadio rack per reti.
  • Messo a soffitto spinge l'aria fuori dalle feritoie del tettuccio.
  • Rumorosità 47 dbm.
  • Certificato CE DIN EN 10130 99 EREGLI DC-01 6112 CRS.
  • Completo di cavo di alimentazione e interruttore on/off.
  • In acciaio 1.2 mm.
  • Colore grigio chiaro (RAL7035).

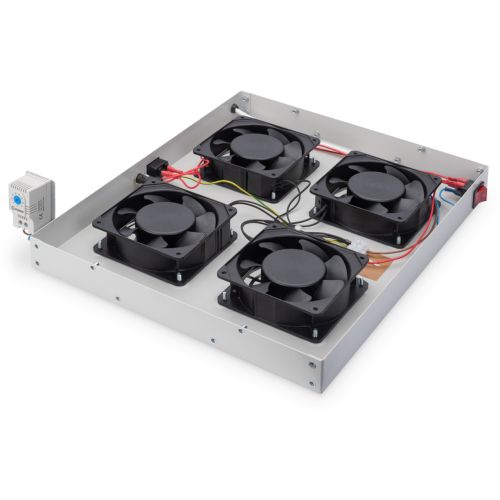

Ventilation unit for 483 mm (19") installation 4 fans, thermostat, switch, grey (RAL 7035)

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.
Technical Details

  • For installation into 483 mm (19") unit
  • incl. mounting brackets for varioFLEX roof installation
  • 4 fans
  • Noise level: 47 dBm
  • incl. thermostat, adjustable from 0 °C up to +70 °C
  • On/off switch
  • Air flow: 9.2 m³/min.
  • 1.8 m cable with CEE 7/7 (Type-F) plug
  • Mounting method: Screw mounting
  • Colour: Grey
  • Width: 483
  • Height: 45
  • Depth: 354
  • RAL-number: 7035
  • Voltage type: AC
  • Suitable for 19 inch rack mounting: yes
  • Number of fans: 4
  • EMC-version: yes
  • Degree of protection (IP): IP20
  • With filter: no
  • Rated power: 13.8
  • Roof ventilator: no
  • Built as slide-in ventilator: yes
  • Volume flow, freeblowing: 552
  • Air circulater: no
  • Wall build in: no
  • Operating voltage at AC 50 Hz: … 240
  • Operating voltage at AC 60 Hz: … 220
  • Operating voltage at DC: … 48
