DN-19 FAN-4-SRV, KIT 4 VENTOLE CON TERMOSTATO COLORE GRIGIO CHIARO PER ARMADI LINEA SERVER
DN-19 FAN-4-SRV
KIT 4 VENTOLE CON TERMOSTATO COLORE GRIGIO CHIARO PER ARMADI LINEA SERVER
SISTEMA DI VENTILAZIONE PER RACK 19" CON TERMOSTATO.
- Per armadi linea server.
- Per installazione a soffitto dei mobili rack profondi 1000 mm. della linea server.
- Fino a 12,8 metri cubi di circolazione aria al minuto, con termostato per regolare la temperatura di partenza e interruttore di accensione.
- Certificato CE, DIN EN10130-99 EREGLI DC-01 6112 CRS.
- Colore Grigio chiaro (RAL7035).

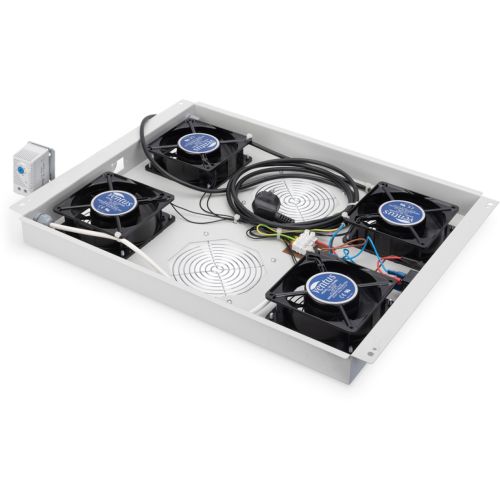

The Roof Ventilation Units are suitable for all server cabinet of the Unique series.
The installation in the roof module of the cabinet can be done quick and easy. A switch as well as an adjustable thermostat provide best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either four or six fans.
Technical Details
- For installation into top-floor module

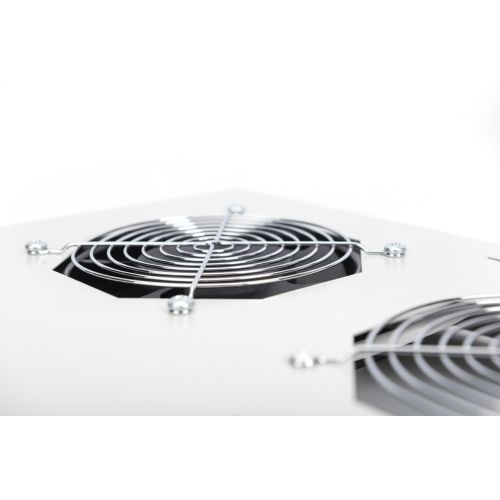

- 4 fans
- Noise level: 47 dBm

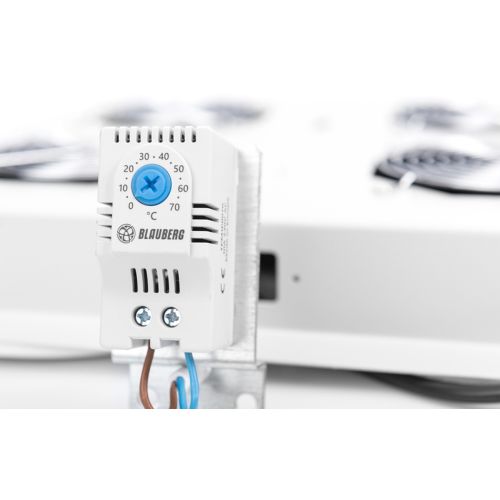

- incl. thermostat, adjustable from 0 °C up to +70 °C

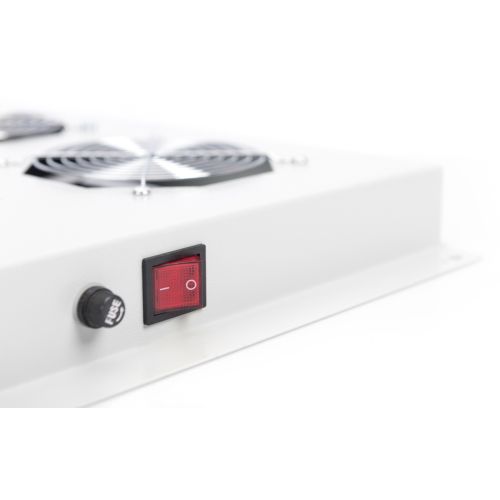

- On/off switch
- Air flow: 9.2 m³/min.
- 1.8 m cable with CEE 7/7 (Type-F) plug
- Mounting method: Screw mounting
- Colour: Grey
- Width: 420
- Height: 50
- Depth: 530
- RAL-number: 7035
- Voltage type: AC
- Suitable for 19 inch rack mounting: no
- Number of fans: 4
- EMC-version: yes
- Degree of protection (IP): IP20
- With filter: no
- Rated power: 13.8
- Roof ventilator: yes
- Built as slide-in ventilator: no
- Volume flow, freeblowing: 552
- Air circulater: no
- Wall build in: no
- Operating voltage at AC 50 Hz: … 240
- Operating voltage at AC 60 Hz: … 220
- Operating voltage at DC: … 48
