DN-47100-4 DIGITUS 26 unita'

 Descrizione

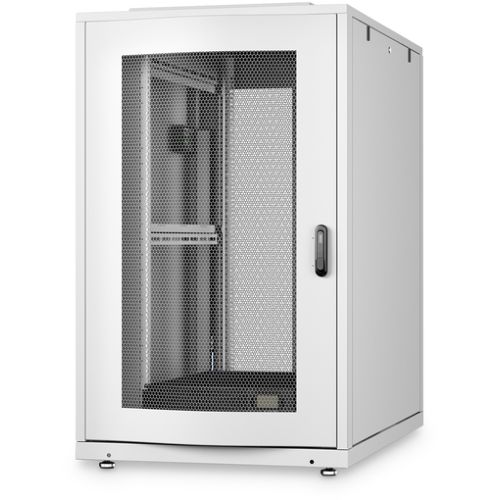

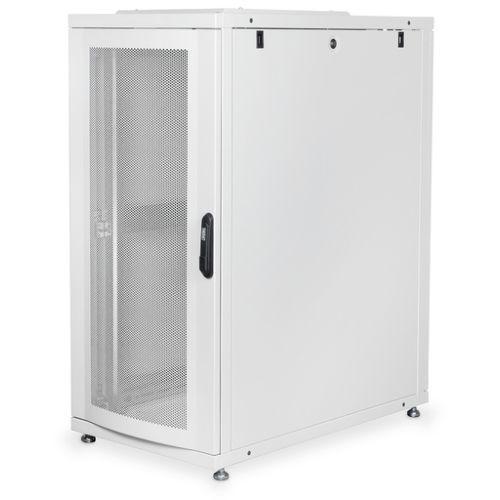

The DIGITUS® Edge System A3-4 is a full-fledged micro data center. It is suitable for installation in clean and well-ventilated rooms in the IT server environment

• The Edge System A3-4 is designed for a maximum installed ICT load of 3 kW
• The 26 rack unit server cabinet comes in protection class IP20, dimensions: 600 x 1000 x 1340 mm (WxDxH)
• 20 rack units are available for the installation of additional devices
• A double converter UPS system with a nominal capacity of 3 kVA safeguards the system against 10 common network errors
• One PDU with 16 x C13 and 4 x C19 outputs offers sufficient resources for a variety of applications: all of them can be measured separately, including differential current measurement.
• The thermal load is emitted into the room through perforated doors
• The integrated monitoring device enables remote monitoring of the most important parameters (temperature, humidity, door contacts).

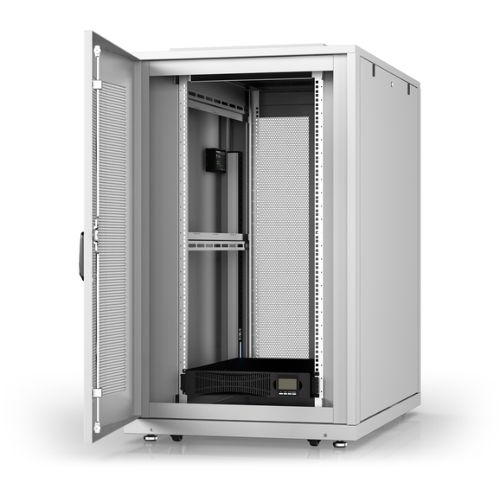

In the Edge System A3-4, the following components are combined to form a homogeneous micro data center. Server cabinet: The standardized 19” server cabinet with a gross height of 26 rack units allows for variable installation of all standardized ICT components and comes in protection class IP20. Access to the inside of the cabinet is secured using a mechanical locking system. Optional accessories such as cable management ensure tidy and clean cable routing inside the cabinet. Main power distributor: The devices installed in the cabinet are supplied with power via a single-phase 16A cable. UPS: The Edge System A3-4 protects the installed devices against numerous network disruptions thanks to a top-class 3kVA UPS (VFI, Voltage and Frequency Independent). The installed batteries offer protection for roughly 5 minutes, this protection can be extended through optional battery expansions. Cabinet power distribution: One PDU with 16 x C13 and 4 x C19 outputs offers sufficient resources for a variety of applications: all of them can be measured separately, including differential current measurement. Cooling: The thermal load is emitted into the room through perforated doors. Remote monitoring / control: The integrated monitoring device enables remote monitoring of the most important parameters (temperature, humidity, door contacts). Accessories: A wide range of accessories are available to choose from for the DIGITUS® Edge Solution as optional extensions. Integration: Depending on the customer’s requirements, the DIGITUS® Edge System A3-4 is available for delivery as a “bundle” (components packaged separately), partially installed or as a fully installed, configured and tested system.

Dettagli tecnici

26U 600 x 1000 mm, IP20 server cabinet, air blanking panels, grey (RAL 7035)
OnLine UPS, 3000VA/2700W, 12V/9Ah x6 battery,8x IEC C13, 1x IEC C19, LCD
Metered PDU, 16 A, 4 x IEC C19, 16 x IEC C13, Residual current metering (RCM), vertical mounting
Power cord, IEC60309 16A plug, with 3x2,5mm 2x3m cable, open end other side
SNMP card
Slide rails for UPS units
Rack monitoring system, 12 digital inputs, redundant power supply, 4 sensor connectors
Door contact sensor
Temperature sensor
IP protection class: IP20
Color: light grey, RAL 7035
Type of cooling: Passive cooling
Depth: 1000 mm
Front door: Steel door, perforated, single opening
Maximum electrical load: 3kW
Inch dimension (IEC 60297): 482.6 mm (19")
Units: 26
Load capacity: 1000 kg
Environmental monitoring: Environmental monitoring
Mounted: yes
Metered Power Distribution Unit (PDU): yes
Cabinet type: Server cabinet
Width: 600 mm
