E003188, 5G 4-IN-1 COMBO SCREW MOUNT ANTENNA 700-960MHz/1100-2690MHz/3300-5000MHz, IP67, Connector SMA male, Cable 4 x RG 174, 1000 mm
E003188
5G 4-IN-1 COMBO SCREW MOUNT ANTENNA 700-960MHz/1100-2690MHz/3300-5000MHz, IP67, Connector SMA male, Cable 4 x RG 174, 1000 mm
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Prodotti Correlati
Frequency Range 700 ~ 960 MHz/1100 ~ 2690 MHz/ 3300 ~ 5000 MHz
Gain ≥ -0.5 dBi
V.S.W.R 4.0 Max
Polarization Linear
Impedance 50 Ohm
Connector SMA male RoHS Comliant √
Installation Method Screw mount

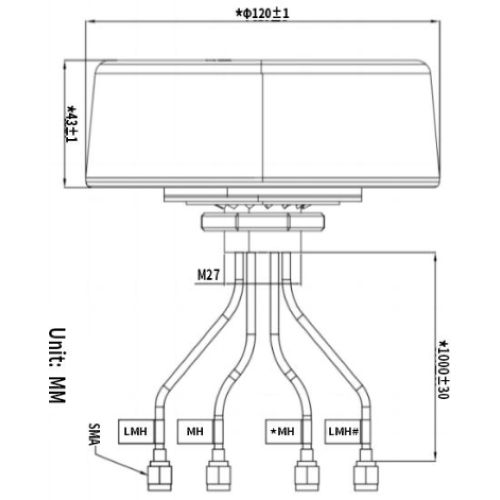

Housing Dimension Ø 120x43 mm
Operating Temperature -20°C ~ 80°C
GNSS Supported
Ingress Protection Rating IP67
Cable 4 x RG 174, 1000 mm
Related Products R5020, EG5120-5G
