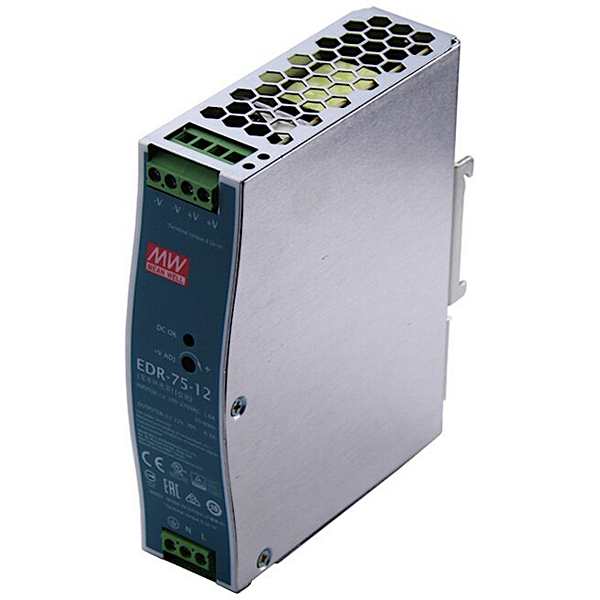

EDR-75-12 Mean Well Barra DIN

EDR-75 is one economical slim 75W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
EDR-75 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control
apparatus (UL508, TUV EN60950-1, and etc.) make EDR-75 a very competitive power supply solution for industrial applications.

Applications

• Industrial control system
• Semiconductor fabrication equipment
• Factory automation
• Electro-mechanical apparatus

Features

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• UL 508 (industrial control equipment) approved
• EN61000-6-2(EN50082-2) industrial immunity level
• 100% full load burn-in test
• 2 years warranty

Specifications

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 6.3A
CURRENT RANGE: 0 ~ 6.3A
RATED POWER: 75.6W
RIPPLE & NOISE (max.): 80mVp-p
VOLTAGE ADJUSTMENT RANGE: 12 ~ 14V
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/230VAC          2000ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC          12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85.5%
AC CURRENT (Typ.): 1.45A/115VAC          0.9A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC          35A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE: 14 ~ 17V
Protection type: Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -20 ~ +60°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85°C, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 50°C)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS: UL508, TUV EN60950-1 approved;(meet  EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class A, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A

MTBF: 506.6K hrs min.      MIL-HDBK-217F (25℃)
DIMENSIONS: (WxHxD) 32 x 125.2 x 102 mm
