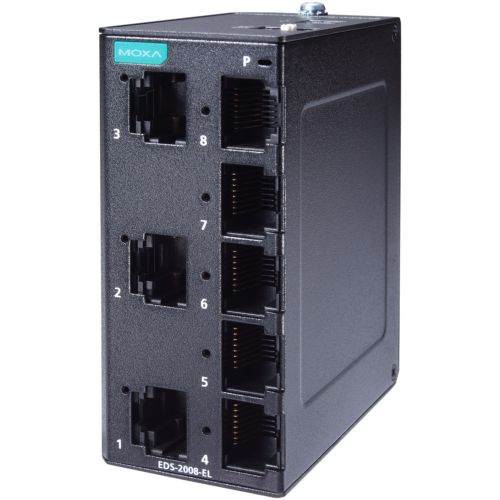

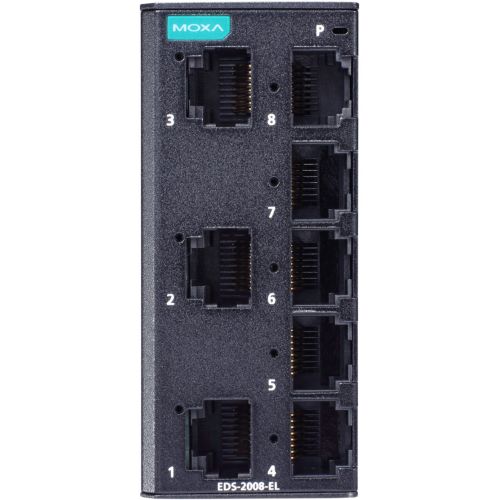

EDS-2008-EL-T MOXA DIN Rail Unmanaged switches

Features and Benefits

•  10/100BaseT(X) (RJ45 connector)
•  Compact size for easy installation

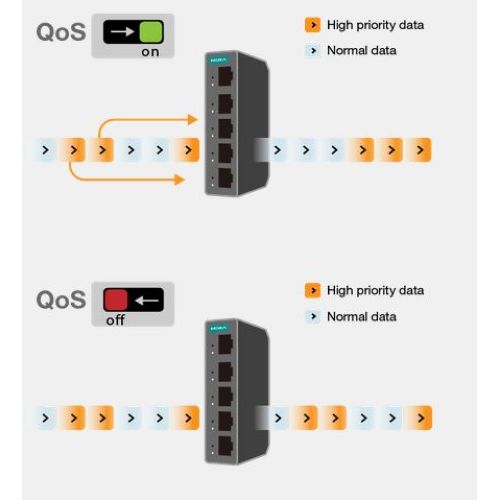

•  QoS supported to process critical data in heavy traffic
•  IP40-rated metal housing
•  -10 to 60°C

The EDS-2008-EL-T series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL-T Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments can also be selected.

The EDS-2008-EL-T Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL-T Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed.

The EDS-2008-EL-T Series has a standard operating temperature range of -40 to 75°C .

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

EDS-2008-EL-T: 8
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service

Switch Properties

Processing Type: Store and Forward

MAC Table Size 8 K

Packet Buffer Size: 4 Mbits

DIP Switch Configuration

Ethernet Interface Quality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters

Connection:    1 removable 2-contact terminal block(s)

Input Current:  0.067A @ 24 VDC

Input Voltage: 12/24/48 VDC

Operating Voltage: 9.6 to 60 VDC

Overload Current Protection Supported

Reverse Polarity Protection:  Supported

 Physical Characteristics

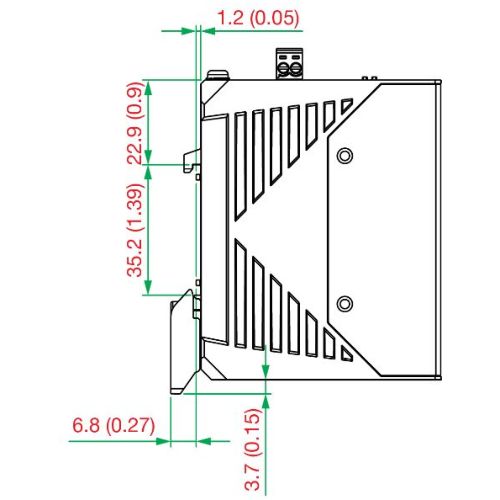

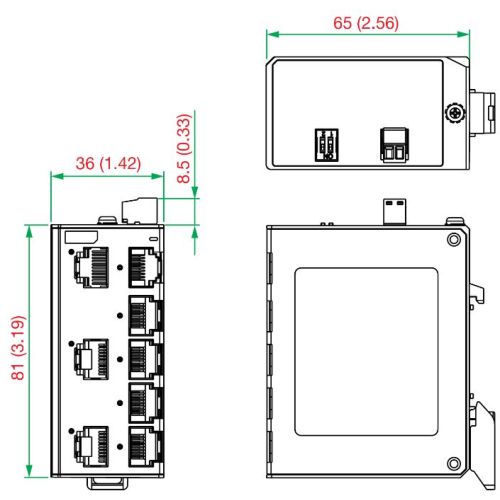

Dimensions 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
Installation: DIN-rail mounting,  Wall mounting (with optional kit)
Weight 163 g (0.36 lb)
Housing Metal


Standards and Certifications

Safety UL 61010-2-201, EN 62368-1 (LVD)

EMC EN 55032/35

EMI:  CISPR 22, 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m

IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV

IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV

IEC 61000-4-6 CS: 10 V

IEC 61000-4-8 PFMF Shock

IEC 60068-2-27 Vibration

IEC 60068-2-6 Freefall

IEC 60068-2-32

Warranty Warranty Period 5 years
