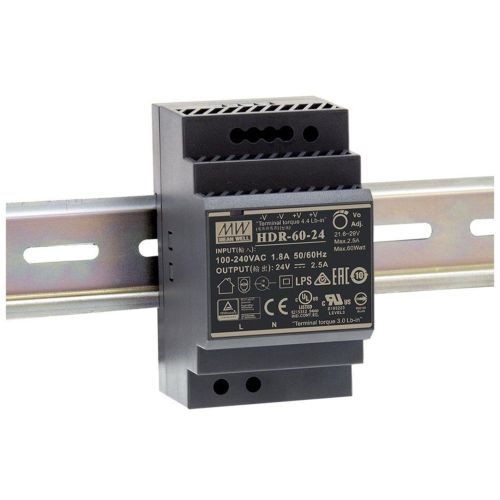

HDR-60-24-MW
60W/2.5A DIN-Rail 24V VDC power supply with universal 85 to 264 VAC input: -20~70°C
HDR-60 is one economical ultra slim 60W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 52.5mm(3SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-60 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 91%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC60950-1,UL508,UL60950-1,EN61558-2-16) make HDR-60 a very competitive power supply solution for household and industrial applications.
Applications
- Household control system
- Building automation
- Industrial control system
- Factory automation
- Electro-mechanical apparatus
Features
- Ultra slim design with 52.5mm(3SU) width
- Universal input 85~264VAC(277VAC operational)
- No load power consumption<0.3W
- Isolation class II
- Pass LPS (Limited power source)
- DC output voltage adjustable
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection (working temperature:-30~+70°C)
- DIN rail TS-35/7.5 or 15 mountable
- Over voltage category Ⅲ
- LED indicator for power on
- 3 years warranty
Specifications
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 2.5A
CURRENT RANGE: 0 ~ 2.5A
RATED POWER: 60W
RIPPLE & NOISE (max.): 150mVp-p
VOLTAGE ADJUSTMENT RANGE: 21.6 ~ 29V
VOLTAGE TOLERANCE: ±1.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 50ms/230VAC 500ms, 50ms/230VAC at full load
HOLD UP TIME (Typ.): 30ms/230VAC 12ms/115VAC at full load
INPUT
VOLTAGE RANGE: 85 ~ 264VAC (277VAC operational )
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.2A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC
PROTECTION
OVERLOAD: 105 ~ 160% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 30 ~ 36V
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
WORKING TEMP.: -30 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85°C, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 50°C) RH non-condensing
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 2000 meters
OVER VOLTAGE CATEGORY: Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY & EMC
SAFETY STANDARDS: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to TUV EN60950-1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION:
EN55032(CISPR32) Conducted: Class B
EN55032(CISPR32) Radiated: Class B
EN61000-3-2 Harmonic Current: Class A
EN61000-3-3 Voltage Flicker
EMC IMMUNITY:
EN55024, EN55035, EN61000-6-2, EN61204-3
EN61000-4-2 ESD: Level 3, 8KV air; Level 2, 4KV contact, criteria A
EN61000-4-3 Radiated Susceptibility: Level 3, criteria A
EN61000-4-4 EFT/Burest: Level 3, criteria A
EN61000-4-5 Surge: Level 4,2KV/L-N, criteria A
EN61000-4-6 Conducted: Level 3, criteria A
EN61000-4-8 Magnetic Field: Level 4, criteria A
EN61000-4-11 Voltage Dips and interruptions: >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
MTBF: 927.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSIONS: (WxHxD) 52.5 x 90 x 54.5 mm
