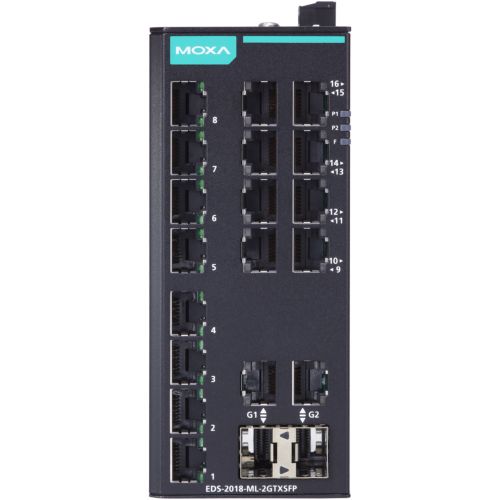

EDS-2018-ML-2GTXSFP, Unmanaged Gigabit Ethernet switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, and -10 to 60°C operating temperature
EDS-2018-ML-2GTXSFP
Unmanaged Gigabit Ethernet switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, and -10 to 60°C operating temperature
SPEDIZIONE GRATUITA
Certificati
Features and Benefits
- 2 Gigabit uplinks with flexible interface design for high-band width data aggregation
- QoS supported to process critical data in heavy traffic
- Relay output warning for power failure and port break alarm
- IP30-rated metal housing
- Redundant dual 12/24/48VD Cpower inputs
- -10 to 60° Coperatingtemperaturerange(-Tmodels)
Features and Benefits
- 2 Gigabit uplinks with flexible interface design for high-band width data aggregation
- QoS supported to process critical data in heavy traffic
- Relay output warning for power failure and port break alarm
- IP30-rated metal housing
- Redundant dual 12/24/48VD Cpower inputs
- -10 to 60°C operating temperature range
Specifications
| Ethernet Interface | 10/100 BaseT(X) Ports(RJ45connector) 16 Auto MDI/MDI-X connection Full/Half duplex mode Autonegotiation speed |
| ComboPorts(10/100/1000BaseT(X) or 100/1000BaseSFP+) | 2 Autonegotiation speed Auto MDI/MDI-X connection Full/Half duplex mode |
| Standards | IEEE 802.3 for 10BaseT IEEE802.3u for 100BaseT(X) IEEE802.3ab for 1000BaseT(X) IEEE802.3z for 1000BaseX IEEE802.3x for flowcontrol IEEE802.1p for Class of Service |
Switch Properties
| MAC Table Size | 8K Packet Buffer Size |
| Packet Buffer Size | 4 Mbits |
| Processing Type | Store and Forward |
| DIP Switch Configuration | |
