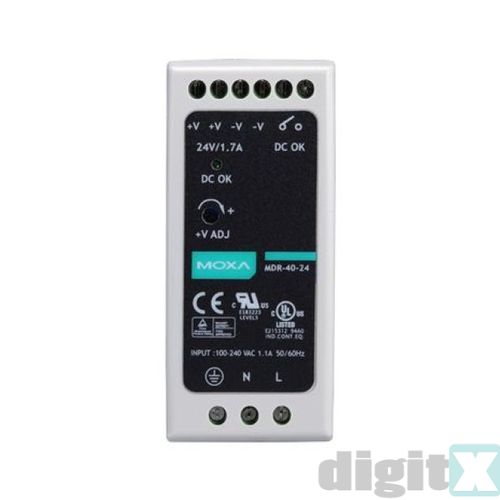

MDR-40-24 MOXA Barra DIN

MDR-40-24 MOXA

MDR-40-24

40W/1.7A DIN-Rail 24V VDC power supply with universal 85 to 264 VAC input: -20~70°C

Quantità':

Prezzo per pezzo

€ 77,52

(IVA esclusa)

€ 94,57 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 77,52
3+ pz. € 75,972
5+ pz. € 74,424

Prezzo di 1 pz. iva (22%) inclusa: € 94,57

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 78498

Model: MDR-40-24

Bisogno di aiuto?


Features and Benefits

  • Economical and reliable DC power source for industrial devices
  • -20 to 70°C operating temperature range
  • Design for use in harsh industrial environment

Introduction

The MDR series of power supplies provides a reliable DC power source for any industrial control system. Combining wide operating tempeature range (-20~70°C), compact enclosures, industrial standards and approvals, and offering short circuit, over load, over voltage, and over temperature protection, the MDR series makes your power supply choice a simple one. The MDR series has passed a 100% full load burn-in test, and are UL/CUL listed, TÜV/CB certified, and CE marked. Models are available with output ratings from 40W to 60W, with 24 VDC output. Customers can choose from a full range of input voltages (85 to 264 VAC) making the MDR series unbeatable.

Applications

  • Factory automation
  • Transportation automation
  • Utility automation
  • Building automation

Specifications

Power: 40 W
Input: 85-264 VAC (47-63 Hz) or 120-370 VDC
Output: 40 W, 24 VDC, 0-1.7 A
Over-voltage Protection: 31.2-36 V
Overload Protection: 105-150%
Type: Constant Current Limiting
Reset: Auto Recovery
Inrush Current: 30 A and 115 V, or 60 A and 230 V
Safety Standards: TÜV EN60950-1, UL508 Approved
EMC Standards: CISPR22 (EN55022) Class B, EN61000-4-2/3/4/5/6/8/11, ENV50204, EN61000-3-2, EN50082-2
Dimensions: 40 x 90 x 100 mm
Weight: 260 g
Operating Temperature: -20 to 70°C (-4 to 158°F)
Relative Humidity: 20 to 90% RH
Warranty: 3 years
