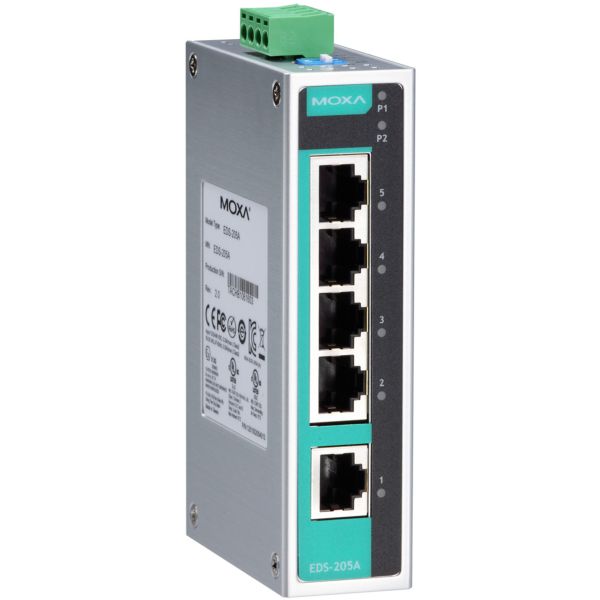

EDS-205A MOXA DIN Rail Unmanaged switches

Features and Benefits

• 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
• Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs
• IP30 aluminum housing
• Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), Transportation (NEMA TS2/ EN 50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/NK)
• -40 to 75°C operating temperature range (T models)

Introduction

The EDS-205A/208A series are 5 and 8-port industrial Ethernet switches that support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A/208A switches provide 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power inputs that can be connected simultaneously to live AC/DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications(EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards. The EDS-205A/208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A/208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Technology

Standards:
     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseT(X) and 100BaseFX
     IEEE 802.3x for Flow Control
Processing Type: Store and Forward
Flow Control: IEEE 802.3x flow control, back pressure flow control

Switch Properties

MAC Table Size: 1 K
Packet Buffer Size: 512 kbit

Interface

Fiber Ports: 100BaseFX ports (SC/ST connector, multi-mode, single-mode)
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
DIP Switches: Enable/Disable broadcast storm protection
LED Indicators: Power, 10/100M (TP port), 100M (fiber port)

Optical Fiber

Table:
     100BaseFX:
          Multi-mode:
               Wavelength: 1300 nm
               Max. TX: -10 dBm
               Min. TX: -20 dBm
               RX Sensitivity: -32 dBm
               Link Budget: 12 dB

               Typical Distance:
                    5 km
                    4 km

               Saturation: -6 dBm

          Single-mode:
               Wavelength: 1310 nm
               Max. TX: 0 dBm
               Min. TX: -5 dBm
               RX Sensitivity: -34 dBm
               Link Budget: 29 dB
               Typical Distance: 40 km
               Saturation: -3 dBm

Power Requirements

Input Voltage: 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs
Input Current:
     EDS-205A: 0.1 A @ 24 V
     EDS-205A-M/S: 0.11 A @ 24 V
     EDS-208A: 0.13 A @ 24 V
     EDS-208A-M: 0.17 A @ 24 V
     EDS-208A-MM/SS: 0.22 A @ 24 V
Overload Current Protection: 1.1 A
Connection: 1 removable 4-contact terminal block
Reverse Polarity Protection: Present

Physical Characteristics

Housing: Aluminum, IP30 protection
Dimensions:
     EDS-205A Series: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
     EDS-208A Series: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in)
Weigh:
     EDS-205A Series: 175 g
     EDS-208A Series: 275 g
Installation: DIN-rail mounting, wall mounting (with optional kit)

Environmental Limits

Operating Temperature:
     Standard Models: -10 to 60°C (14 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: UL 508
Hazardous Location: UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC T4 Gc, , IECEx* (EDS-205A series, -IEX models only)
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
     EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
     EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
     EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Marine: DNV, GL, LR, ABS, NK
Wheeled Vehicles: e-Mark (E1) (EDS-208A only)
Traffic Control: NEMA TS2
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6

MTBF (mean time between failures)

Time:
     EDS-205A Series: 3,040,784 hrs
     EDS-208A Series: 2,428,212 hrs
Database: Telcordia (Bellcore), GB

Warranty

Warranty Period: 5 years
