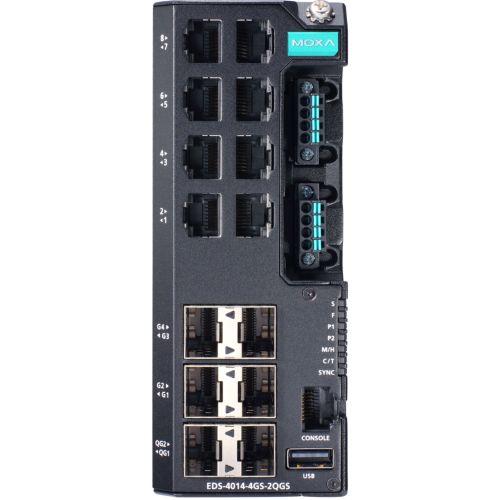

EDS-4014-4GS-2QGS-LV MOXA Gigabit Managed Switches



Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature


Prezzo per pezzo

€ 1.607,76

(IVA esclusa)

€ 1.961,47 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 1.961,47

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 119258

Model: EDS-4014-4GS-2QGS-LV

Bisogno di aiuto?


CE Certificato
FCC Certificato
UL Certificato
EN 50121-4 Certificato
NEMA TS2 Certificato
IEC Certificato
RoHS Certificato


The EDS-4014 Series is a range of 14-port managed Fast Ethernet switches with four 1 Gbps and two 2.5 Gbps fiber-optic ports.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4014 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Features and Benefits

  •  Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  •  Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
  •  Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
  •  Wide range of power input options for flexible deployment
  •  Compact and flexible housing design to fit into confined spaces
  •  Supports MXstudio for easy, visualized industrial network management


 Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector): 8
Auto MDI/MDI-X connection
Auto negotiation speed
Full/Half duplex mode
100/1000BaseSFP Slots: 4
1000/2500BaseSFP Ports: 2
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3bz for 2.5GBaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication

Ethernet Software Features

Filter: GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Management: IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB
Redundancy Protocols: STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation
Security: Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy
Time Management: SNTP, NTP Server/Client, NTP Authentication
Protocols: IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

Switch Properties

MAC Table Size: 16 K
Jumbo Frame Size: 9.216 KB
Max. No. of VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups: 512
Priority Queues: 4
Packet Buffer Size: 1 MB

LED Interface


Serial Interface

Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

USB Connector: USB Type A (Reserved)

Input/Output Interface

Alarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels: 1
Digital Inputs:
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Buttons: Reset button

DIP Switch Configuration

DIP Switches: Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection: 2 removable 4-contact terminal block(s)
Pre-installed Power Module: PWR-100–LV
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Operating Voltage: 9.6 to 60 VDC
Input Current: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
Power Consumption (Max.): 12.15 W
Overload Current Protection: Supported
Reverse Polarity Protection: Supported

Physical Characteristics

IP Rating: IP40
Dimensions: 55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
Weight: 846 g (1.87 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Housing: Metal

Environmental Limits

Operating Temperature: -10 to 60°C (14 to 140°F)
