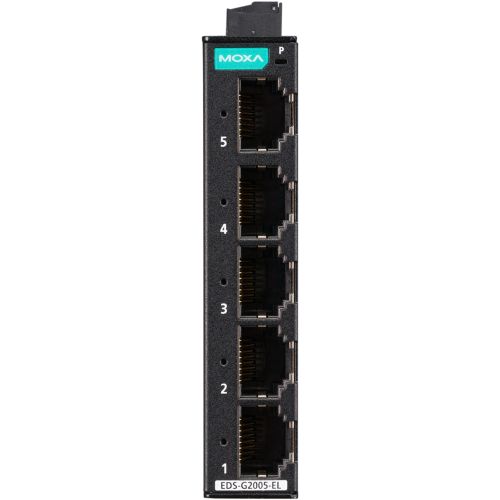

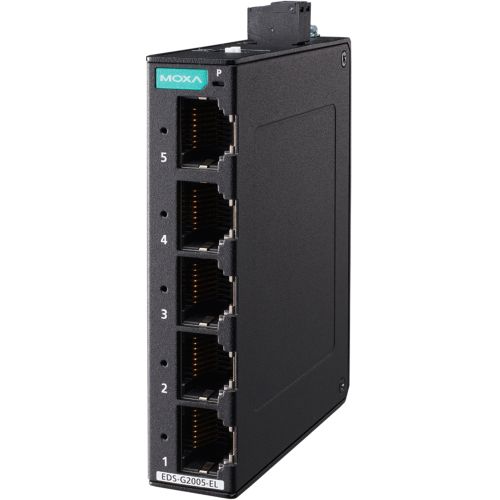

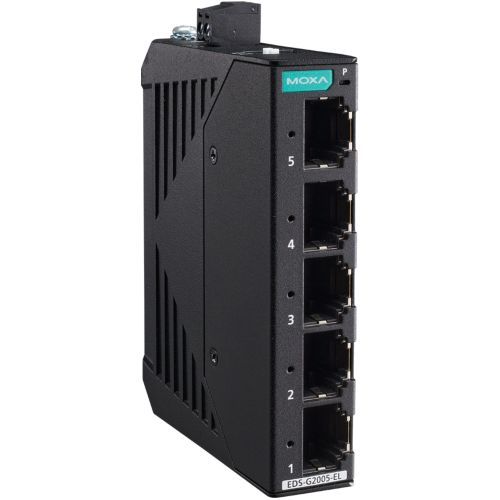

EDS-G2005-EL-T, 5-Port full gigabit Entry-level Unmanaged Switch, 5 Fast TP ports, -40 to 75°C
EDS-G2005-EL-T
5-Port full gigabit Entry-level Unmanaged Switch, 5 Fast TP ports, -40 to 75°C
SPEDIZIONE GRATUITA
Certificati
Introduction
The EDS-G2005-EL series of industrial Ethernet switches have five Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-G2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Features and Benefits
- Full Gigabit Ethernet ports
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated metal housing
- -40 to 75°C wide operating temperature range (-T models)
Specifications
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector):
5
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 4 K
Packet Buffer Size: 1.5 Mbits
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
Connection: 1 removable 2-contact terminal block(s)
Input Current: 0.21 A (max.)
Input Voltage: 12/24/48 VDC
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Dimensions: 18 x 81 x 65 mm (0.71 x 3.19 x 2.56 in)
Installation
DIN-rail mountin: Wall mounting (with optional kit)
Weight: 120 g (0.26 lb)
Housing: Metal
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included):-40 to 85°C (-40 to 185°F)
Standards and Certifications
Safety: UL 61010-2-201, EN 62368-1 (LVD)
EMC: EN 55032/35, EN 61000-6-2/-6-4
EMI: CISPR, 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
MTBF
Time: 3,404,784 hrs
Standards: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 year
