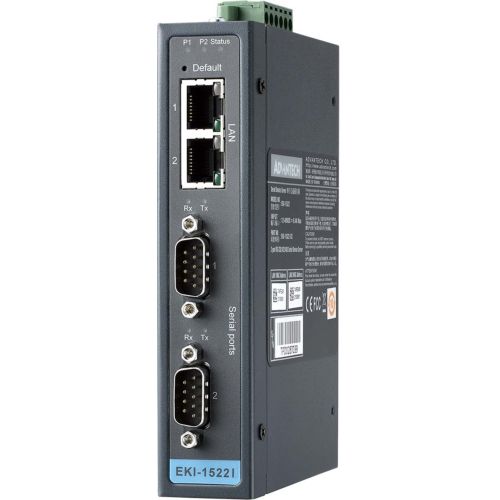

EKI-1522I-CE ADVANTECH External Device Servers

EKI-1522I-CE ADVANTECH

EKI-1522I-CE

2-port Serial Device Server with Wide temperature

Quantità':

Prezzo per pezzo

€ 508,88

(IVA esclusa)

€ 620,83 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 620,83

Disponibilità: 10 gg lav

Brand: ADVANTECH

SKU: 117153

Model: EKI-1522I-CE

Bisogno di aiuto?


Features

  • 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
  • Supports up to 921.6 kbps and any baud rate setting
  • Allows a maximum of 5 hosts to access one serial port
  • Allows a maximum of 16 hosts to be accessed in TCP client mode
  • Built-in 15-kV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and web browser
  • Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
  • Automatic RS-485 data flow control
  • Supports line-to-line (2 kV) and line-to-ground (4 kV) surge protection
  • "I" models support a wide operating temperature
  • "CI" models support isolation and a wide operating temperature

Introduction

The EKI-1521, EKI-1522, and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism that guarantees Ethernet network
reliability. These serial device servers are designed to connect RS-232/422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN.
They allow nearly any device with serial ports to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport),
TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with
legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI- 1521, EKI-1522, and EKI-1524 ensure
compatibility in network software using a standard network API. Moreover, serial devices can be made communicate with other devices via peer-to-peer, thus eliminating the need for
an intermediate host PC and software programming.

Specifications

Ethernet Communications

Compatibility: IEEE 802.3, IEEE 802.3u
Speed: 10/100 Mbps
No. of Ports: 2
Port Connector: 8-pin RJ45
Protection: Built-in 2.25 k VDC magnetic isolation

Serial Communications

Port Type: RS-232/422/485(2-wire)/485(4-wire), software selectable
No. of Ports: 2
Port Connector: DB9 male
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Odd, Even, Space, Mark
Flow Control: XON/XOFF, RTS/CTS
Baud Rate:50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals:
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
RS-485 4-wire: TxD+, TxD-, RxD+, RxD-, GND

Protection: Built-in 15 KV ESD for all signals

Software

Driver Support: 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
Operation Modes:
COM port redirection mode (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair connection (peer to peer) mode
Configuration: Windows utility, Telnet console, Web Browser
Management: SNMP MIB-II
Protocols: ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP

Mechanics

Dimensions (W x H x D): 30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Enclosure: Metal with solid mounting hardware
Mounting: DIN-rail, Wall
Weight: 0.432Kg


LED Indicators

System: Power, System Status/LAN: Speed, Link/Active
Serial: Tx, Rx

Power Requirements

Input: 12 ~ 48 VDC, redundant dual inputs
Connector: Terminal block
Consumption: 3.2 W

Environment

Operating Temperature: -40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity: 10 ~ 95% RH
