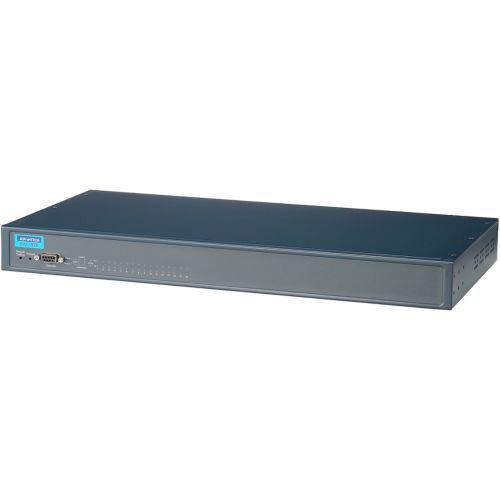

EKI-1526N-CE
16-port RS232/422/485 Serial Device Server
Features
- 8 or 16-port RS-232/422/485 serial communication
- Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
- Supports up to 976.5 kbps, and any baud rate setting
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
- Built-in 15 KV ESD protection for all serial signals
- SNMP MIB-II for network management
- Built-in buzzer for easy location
- Standard 1U rackmount size
- Rear wiring
- Automatic RS-485 data flow control
- "I" models support a wide operating temperature
Introduction
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales
and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to
guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to
thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or
Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.
Specifications
Ethernet Communications
Compatibility: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Speed: 10/100/1000 Mbps, auto MDI/MDIX
No. of Ports: 2
Port Connector: 8-pin RJ45
Protection: Built-in 1.5 KV magnetic isolation
Serial Communications
Port Type: RS-232/422/485, software selectable
No. of Ports: 16
Port Connector: DB9 male or 8-pin RJ45
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Odd, Even, Space, Mark
Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
Baud Rate:
50 bps ~ 976.5 kbps, any baud rate setting
16 ports up to 230.4 kbps simultaneously
Serial Signals:
RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, GND, RI
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
Protection: 15 KV ESD for all signals
Software
Driver Support: 32-bit/64-bit Windows 2000/XP/Vista/7/ 8/8.1/10, Windows Server 2003/2008/2012, and Linux
Utility Software: Advantech EKI Device Configuration Utility
Operation Modes:
COM port redirection mode (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair connection (peer to peer) mode
RFC2217 mode
Configuration: Windows utility, Telnet console, Web Browser, serial console
Protocols: ARP, ICMP, IPv6, TCP, UDP, BOOTP/DHCP Client, Auto IP, Telnet, SNMP, HTTP, DNS, SMTP, NTP
Management: SNMP MIB-II
Mechanics
Dimensions (W x H x D): 438 x 43.6 x 259.2 mm (17.24" x 1.71" x 10.2")
Enclosure: SECC chassis
Mounting: Rack
General
LED Indicators:
System: Power, System Status
LAN: Speed, Link/Active
Serial: Tx, Rx
Alert Tools: Built-in buzzer and RTC (real time clock)
Reboot Trigger: Built-in WDT and push button for hardware reboot
Power Requirements
Power Input: 100 ~ 240 V AC , 50 ~ 60 Hz
Power Consumption: 5.6 W
Environment
Operating Temperature: -10 ~ 60°C (14 ~ 140°F)
Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity: 10 ~ 95% RH
