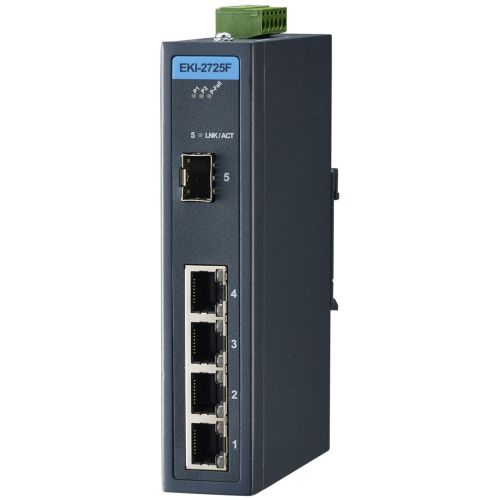

EKI-2725F-AE ADVANTECH DIN Rail Unmanaged switches

 Features

• Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
• Supports 10/100/1000 Mbps auto negotiation
• Supports jumbo frame transmission up to 9kb
• Provides slim size, DIN-rail with IP30 metal mechanism
• Supports redundant 12 ~ 48 VDC power input and P-Fail relay
• Provides broadcast storm protection

Introduction

The EKI-2725F supports Gigabit Ethernet. The power rating is +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse
Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725F has 2 LED’s to
show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm
to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal
housing rated at IP30 to protect against dusty industrial environments.

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
LAN:
4 x 10/100/1000Mbps(RJ-45)+
1 x 100/1000Mbps(SFP)

Transmission Distance:
Ethernet: Up to 100 m (4-wire Cat.5e, Cat.6 RJ45 cable)
SFP: Up to 110 km (depends on SFP)

Transmission Speed: Up to 1000 Mbps

Interface

Connectors:
4 x RJ45 + 1 x SFP
6-pin removable screw terminal (power & relay)

LED Indicators:
P1, P2, P-Fail
10/100/1000T (X): Link/Activity, Duplex/Collision
SFP: LNK/ACT

Power

Power Consumption: 2.5W
Power Input: 12 ~ 48 VDC, redundant dual inputs
Fault Output: 1 Relay Output

Mechanism

Dimensions: (W x H x D) 30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Enclosure: IP30, metal shell with solid mounting kits
Mounting: DIN-rail, wall

Protection

Power Reverse: Present
Overload current: Present

Environment

Operating Temperature: -10 ~ 60 °C (14 ~ 140 °F)
Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity: 10 ~ 95% (non-condensing)
Storage Humidity: 10 ~ 95% (non-condensing)
MTBF: 1,868,330 hours

Certifications

Safety: UL 62368
EMI: CE, FCC Class A
EMS:
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
